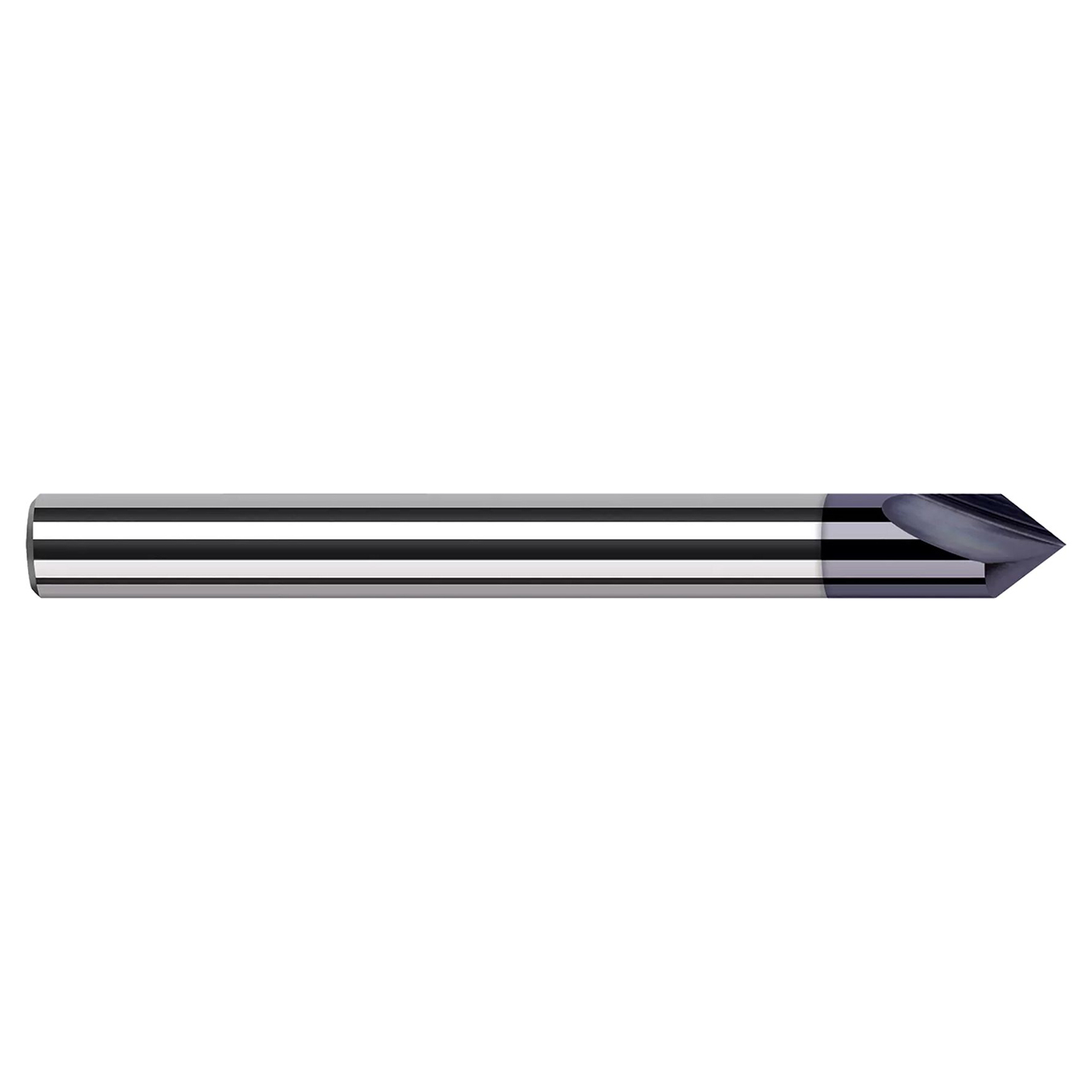

Harvey Tool 743308-C3 | 20 Degree x 0.1710" LOC x 0.1250" (1/8) Shank x AlTiN Coated Carbide Marking Engraving Cutter

$30.50
Brand:
Harvey Tool
Included Angle:
20 Degree
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.1710"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
interval quantity:
1
SKU:
25211205
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number743308-C3
Length of Cut (Inch)0.1710"
Overall Length (Inch)1.5000" (1-1/2)
Angle per Side10
Included Angle20
Flutes2
Web Thickness (Inch)0.0100"
TypeI
Shank Diameter (Inch)0.1250" (1/8)
CoatingC3
