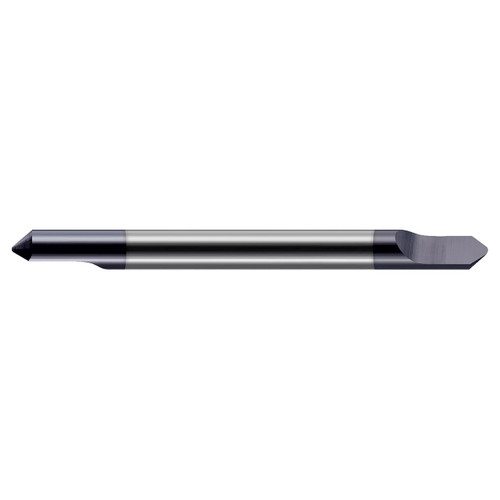

Harvey Tool 743808 | 60 Degree x 0.0930" (3/32) LOC x 0.1250" (1/8) Shank x Uncoated Carbide Double-Ended Tip Radius Engraving Cutter

$42.40
Brand:
Harvey Tool
Radius (Inch):
1/64"
Radius (Decimal Inch):
0.0150"
Included Angle:
60 Degree
Number of Flutes:
1
Length of Cut (Decimal Inch):
0.0930"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
25211206
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number743808
Length of Cut (Inch)0.0930" (3/32)
Overall Length (Inch)2.0000" (2)
Radius (Inch)0.0150" (1/64)
Angle per Side30
Included Angle60
Flutes1
TypeII
Shank Diameter (Inch)0.1250" (1/8)
CoatingUncoated
