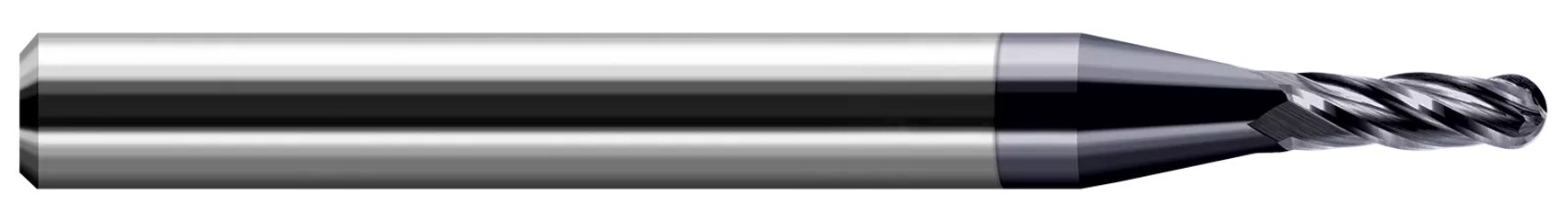

Harvey Tool 74624-C4 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 4 Flute Amorphous Diamond Coated Carbide Ball End Mill

$74.60
Brand:
Harvey Tool
Shank Diameter (Inch):
3/8"
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Number of Flutes:
4
Finish/Coating:
C4
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
SKU:
25186041
UPC:
Weight:
0.12 LBS
Shipping:
Calculated at Checkout
74624-C4

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3750" (3/8)
Length of Cut (Inch)1.0000" (1)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
LOC Multiple3x
Shank Diameter (Inch)0.3750" (3/8)
Coating/FinishC4
