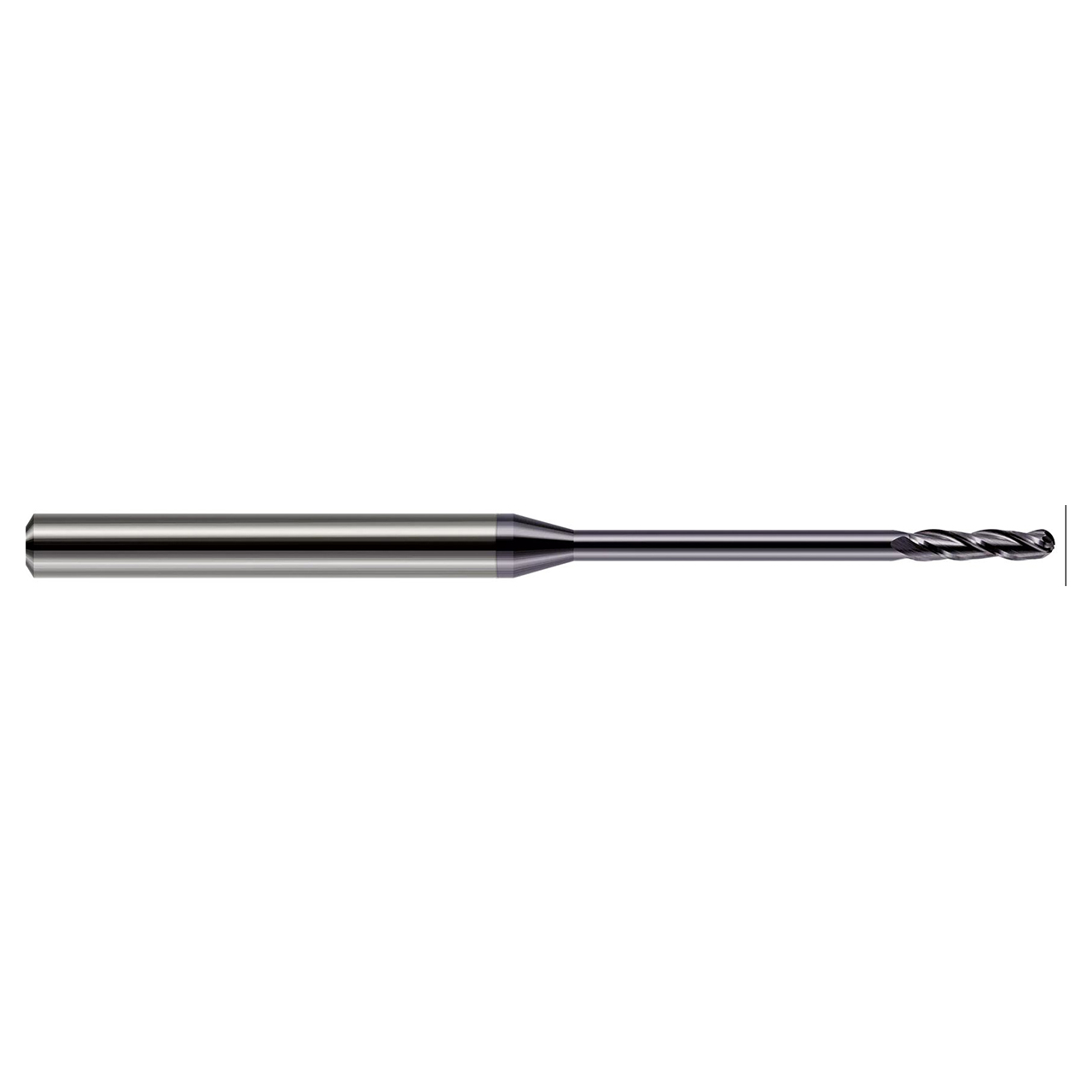

Harvey Tool 750493-C3 | 0.0930" (3/32) Diameter x 0.1250" (1/8) Shank x 0.5000" (1/2) LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

$56.90
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0920"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Number of Flutes:
3
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
SKU:
25211318
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Miniature End Mils is ideal for deep cavity and deep pocket milling. Further, its reduced neck diameter gemoetry works to avoid heeling

  • Long Length Design for Deep Cavities
  • Long Flutes for Deep Pocket Milling
  • CNC ground in the USA
  • Center cutting
  • Solid Carbide
  • 3 Flutes

Product Specifications
Tool Number750493-C3
Cutter Diameter (Inch)0.0930" (3/32)
Neck Diameter (Inch)0.0920"
Length of Cut (Inch)0.5000" (1/2)
Overall Reach (Inch)0.7500" (3/4)
Overall Length (Inch)2.5000" (2-1/2)
Flutes3
LOC Multiple5x
Reach Multiple8x
Shank Diameter (Inch)0.1250" (1/8)
CoatingC3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0920"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Number of Flutes:
3
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
