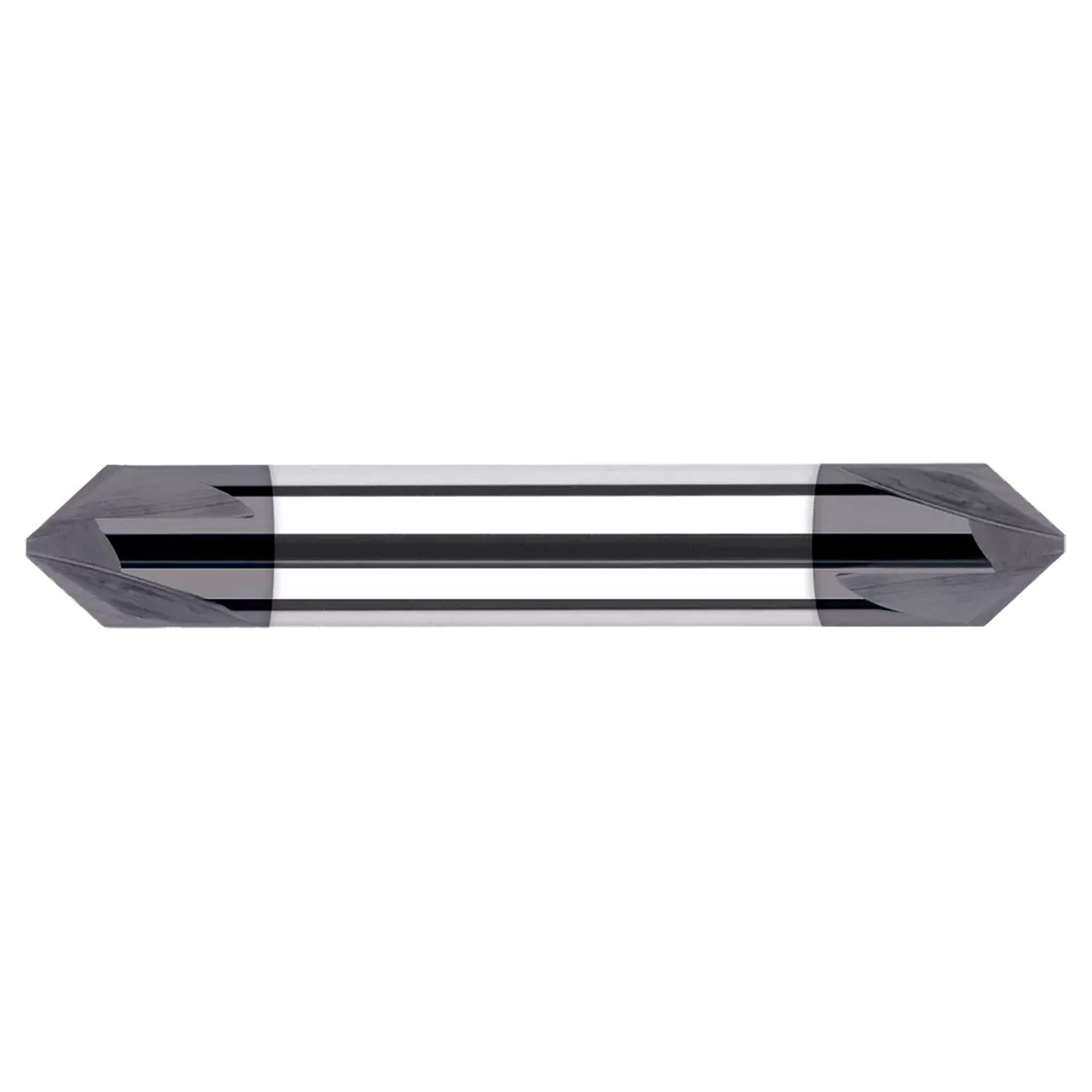

This offering of Harvey Tool Chamfer Cutters - Pointed & Flat End - Double-Ended feature tools in two unique styles: pointed, where a flat relief is ground to center, yielding a web thickness at the top; and flat end, where the flat relief is ground to a non-end cutting flat tip.
| Tool Number | 754545-C3 |
| Length of Cut (Inch) | 0.0730" |
| Overall Length (Inch) | 2.0000" (2) |
| Tip (Inch) | 0.0400" |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 4 |
| Type | III |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | C3 |
