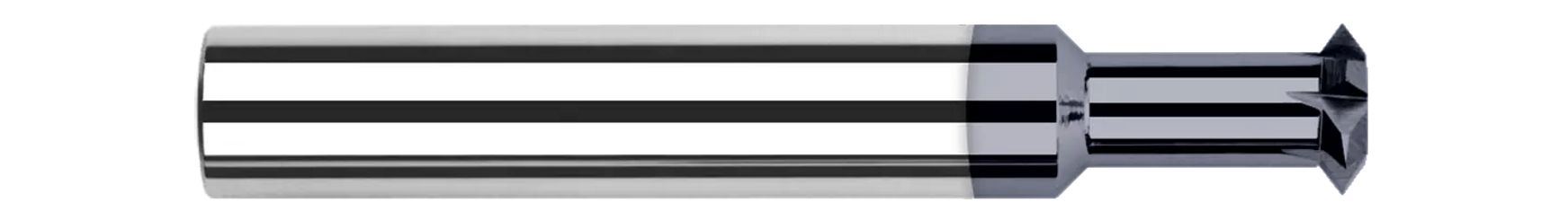

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60 Degree angle allows it to be used for thread milling, as well.
- Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
- Reduced neck for long reach machining
- Tip of included angle ground to a point
- 60 Degree angle can also be used for thread milling
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Neck Diameter (Inch) | 0.1670" |
| Cutter Width (Inch) | 0.3330" |
| Neck Length (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 6 |
| Angle per Side | 45 |
| Included Angle | 90 |
| Type | II |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | C3 |
