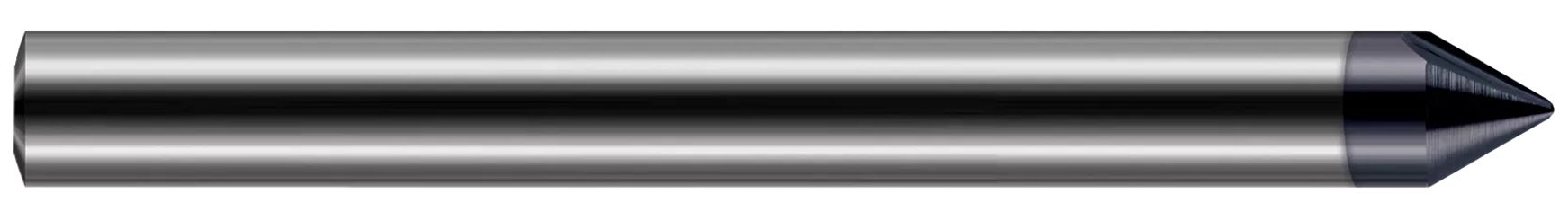

Engraving Cutters - Tip Radius - 2 Flute - For Hardened Steels is a fully stocked, solid carbide tool that features a strong 2 flute design for engraving hardened steels 46-68Rc, and an eccentric relief to increase durability and tool life.
- Strong 2 flute design for engraving hardened steels 46-68Rc
- Eccentric relief increases durability and tool life
- Tip radius end diameter and shallow flute design for improved cutting and strength
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Length of Cut (Inch) | 0.0350" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Radius | 0.0150" (1/64) |
| Number of Flutes | 2 |
| Angle per Side | 60 |
| Included Angle | 120 |
| Type | II |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Radius (Inch):
1/64"
Radius (Decimal Inch):
0.0150"
Included Angle:
20 Degree
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.0800"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C6
