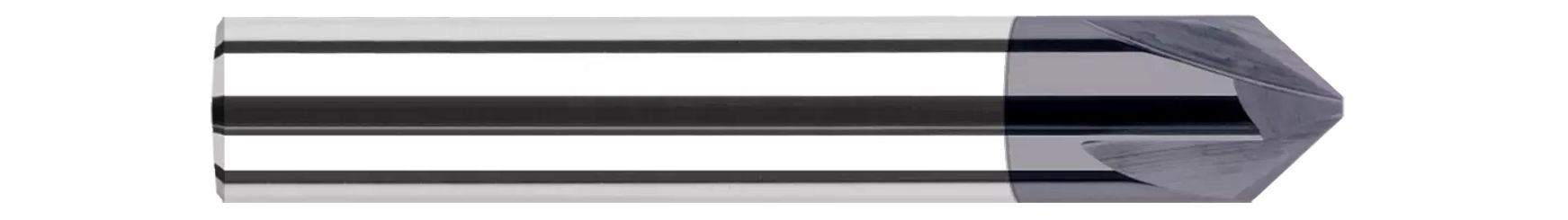

Flat, which is non-end cutting, and optimized for profiling and chamfering larger features.
- Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
Product Specifications
| Length of Cut (Inch) | 0.3250" |
| Overall Length (Inch) | 4.0000" (4) |
| Tip | 0.1000" |
| Number of Flutes | 4 |
| Angle per Side | 45 |
| Included Angle | 90 |
| Type | II |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Length of Cut (Decimal Inch):
0.3250"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Included Angle:
90 Degree
Number of Flutes:
4
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Finish/Coating:
Uncoated
interval quantity:
1
