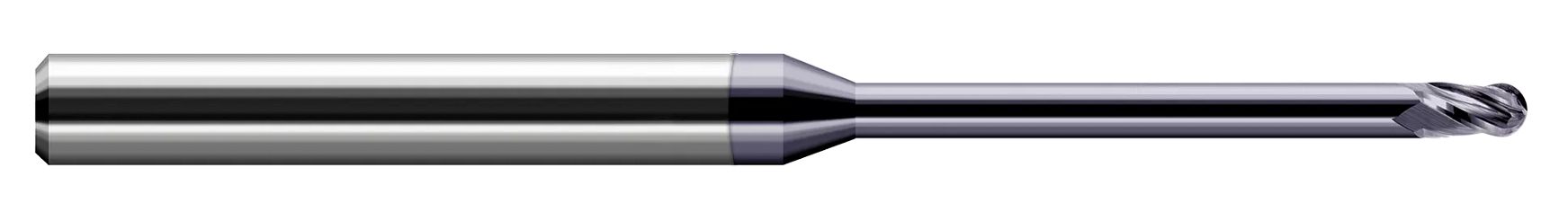

Harvey Tool 769262 | 1/16" Diameter x 1/8" Shank x 3/32" LOC x 2-1/2" OAL 4 Flute Uncoated Carbide Ball End Mill

$43.10
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25187181
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0620" (1/16)
Neck Diameter (Inch)0.0605"
Length of Cut (Inch)0.0930" (3/32)
Overall Reach (Inch)0.6250" (5/8)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
LOC Multiple1.5x
Reach Multiple10x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated
