Product Specifications
| Manufacturer Part Number | 776462 |
| Cutting Diameter (Inch) | 3/8" |
| Shank Diameter (Inch) | 3/8" |
| Neck Diameter (Decimal Inch) | 0.1870" |
| Neck Length (Inch) | 9/16" |
| Cutting Width (Inch) | 1/16" |
| Overall Length (Inch) | 2-1/2" |
| Radial Depth of Cut (Decimal Inch) | 0.0840" |
| Corner Radius (Decimal Inch) | 0.0200" |
| Top Corner Radius (Decimal Inch) | 0.020" |
| Number of Flutes | 8 |
| Coating | Uncoated |

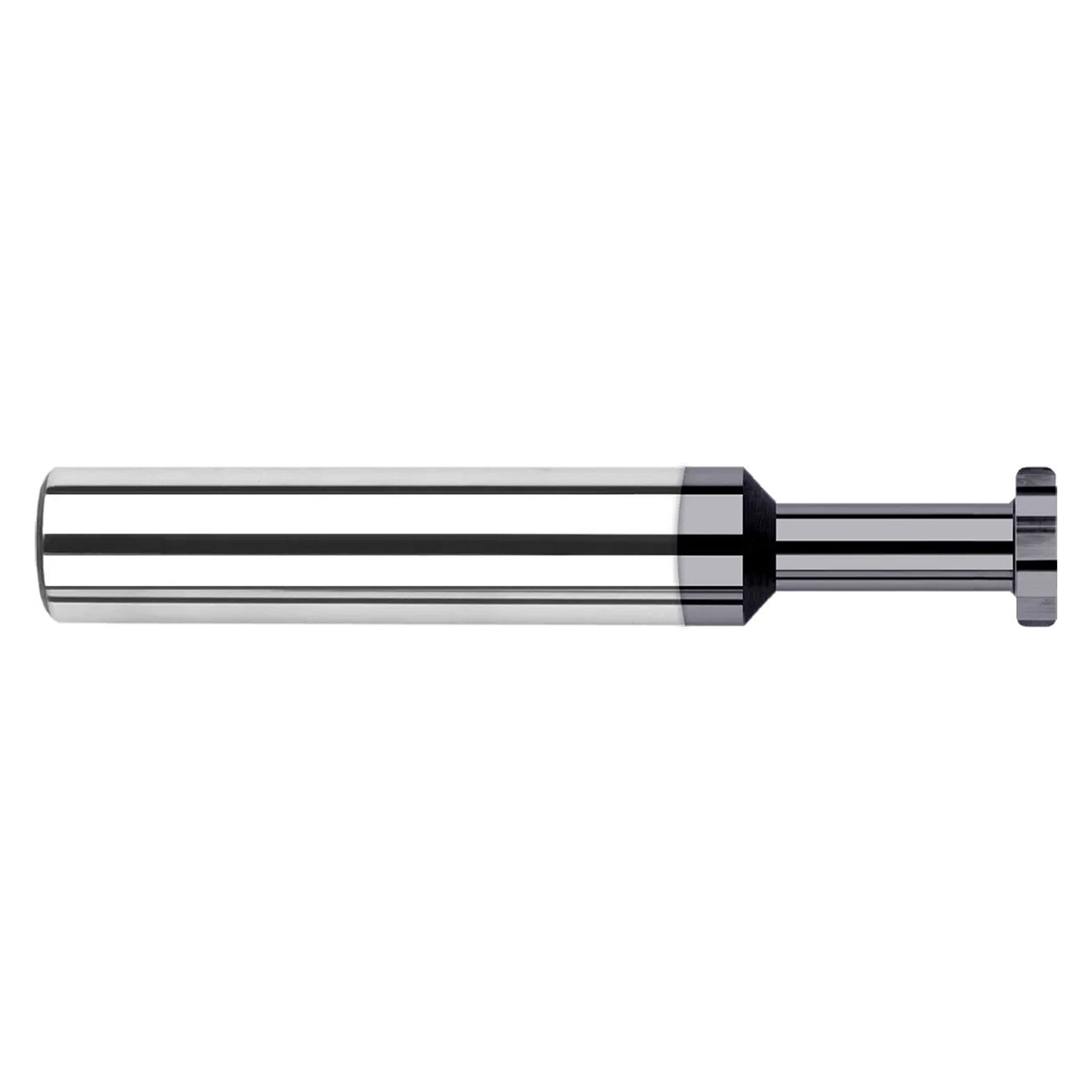

| Product Type | Keyseat Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
3/8"
Cutting Diameter (Decimal Inch):
0.3800"
Cutting Diameter (mm):
9.53mm
Neck Length (Inch):
3/16"
Neck Length (Decimal Inch):
0.1900"
Neck Length (mm):
4.76mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3800"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
