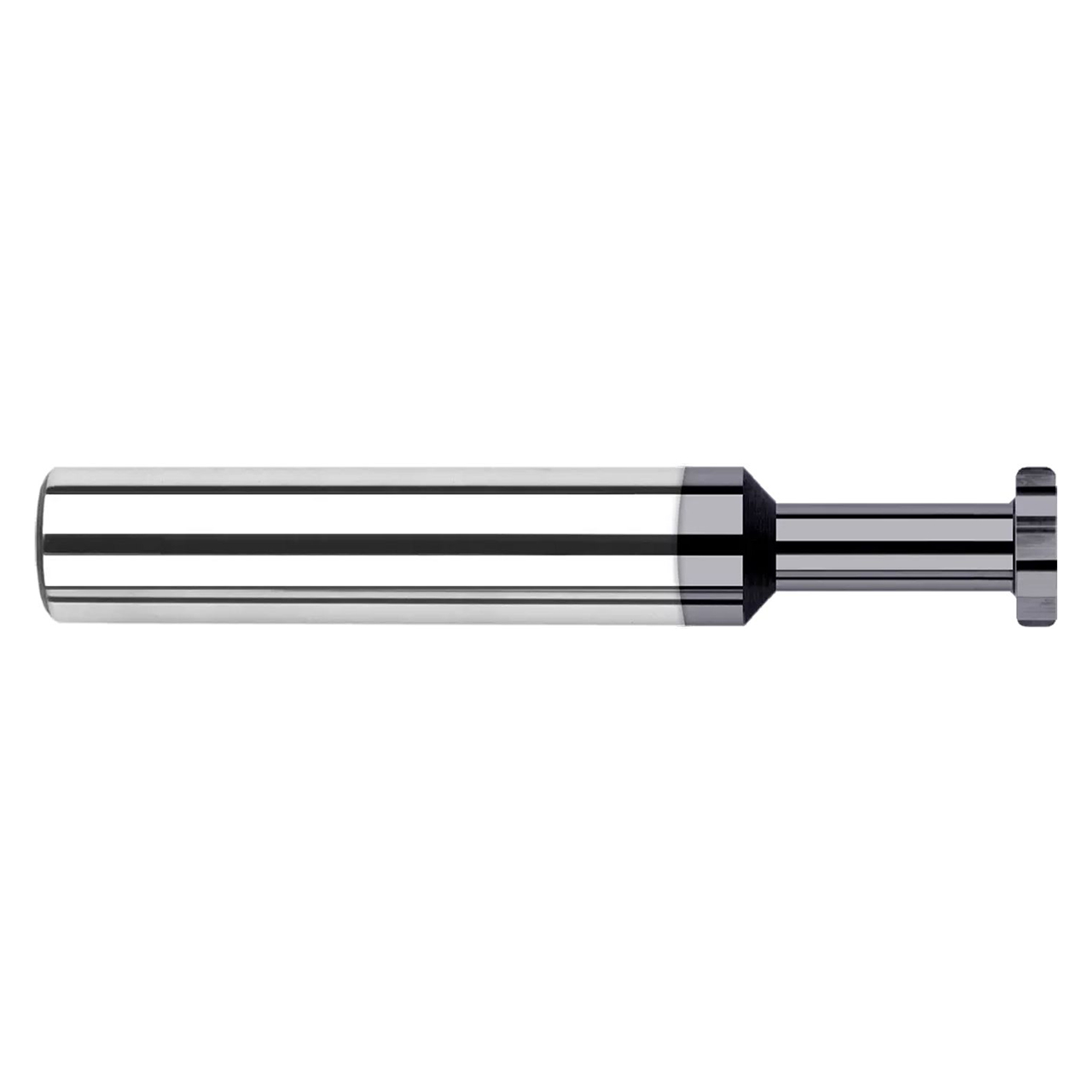

Product Specifications
| Manufacturer Part Number | 776762 |
| Cutting Diameter (Inch) | 1/4" |
| Shank Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.1250" |
| Neck Length (Inch) | 3/8" |
| Cutting Width (Inch) | 1/16" |
| Overall Length (Inch) | 2-1/2" |
| Radial Depth of Cut (Decimal Inch) | 0.0530" |
| Corner Radius (Decimal Inch) | 0.0200" |
| Top Corner Radius (Decimal Inch) | 0.020" |
| Number of Flutes | 6 |
| Coating | Uncoated |
| Product Type | Keyseat Cutter |
