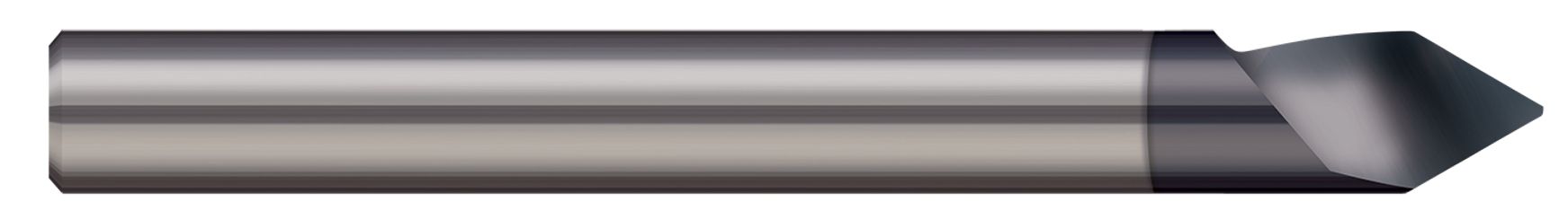

Harvey Tool 779016-C8 | 30 Degree Included Angle x 1/2" LOC x 1/4" Shank TiB2 Coated Carbide Engraving Cutter

$44.70
Brand:
Harvey Tool
Included Angle:
30 Degree
Number of Flutes:
1
Length of Cut (Decimal Inch):
0.4480"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C8
interval quantity:
1
SKU:
25187062
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
779016-C8

Related Products

With optimized geometry for superior engraving in softer materials such as plastics and aluminum, this fully stocked Harvey Tool offering of Engraving Cutters -Tipped Off - Helical Flute features tooling that enables free cutting action, providing excellent surface finish and chip evacuation.

  • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
  • Free cutting action provides excellent surface finish and chip evacuation
  • Tipped-off end diameter for improved cutting action
  • Right hand spiral, right hand cut
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Length of Cut (Inch)0.5000" (1/2)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes1
Angle per Side15
Included Angle30
Flat on Part0.0100"
TypeII
Split Length (Inch)0.1250" (1/8)
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC8
