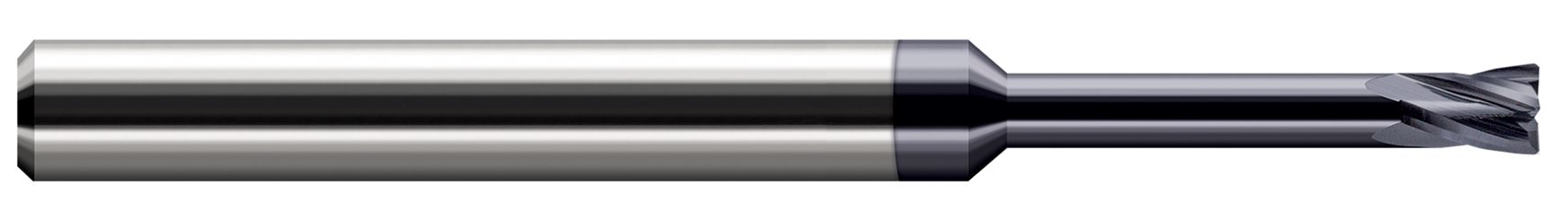

The corner radius profile featured in this offering of Backdraft Cutters adds strength and wear resistance to the cutting tool. This fully stocked, solid carbide offering is designed to clean up the bottom corner of pockets, while a backdraft angle minimizes rubbing.
- Designed to clean up bottom corner of pockets while backdraft angle minimizes rubbing
- Corner radius for improved strength and wear resistance
- 4 helical flutes (20 Degree helix)
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0620" (1/16) |
| Neck Diameter (Inch) | 0.0490" |
| Length of Cut (Inch) | 0.0930" (3/32) |
| Overall Reach (Inch) | 0.3120" (5/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 4 |
| Corner Radius | 0.0050" |
| Angle per Side | 3.0 |
| Included Angle | 6.0 |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/16"
Cutter Diameter (Decimal Inch):
0.0620"
Neck Diameter (Decimal Inch):
0.0490"
Length of Cut (Inch):
3/32"
Length of Cut (Decimal Inch):
0.0930"
Overall Reach (Inch):
5/16"
Overall Reach (Decimal Inch):
0.3120"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0050"
Included Angle:
6.0 Degree
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
