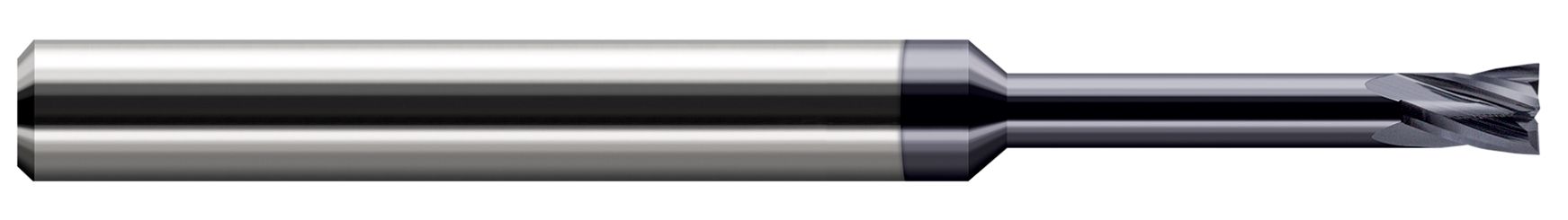

Harvey Tool 779608 | 1/8" Diameter x 1/8" Shank x 3/16" LOC x 2-1/2" OAL 4 Flute Uncoated Carbide Square End Mill

$61.80
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0980"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1870"
Overall Reach (Inch):
5/8"
Overall Reach (Decimal Inch):
0.6250"
Included Angle:
6.0 Degree
Number of Flutes:
4
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
SKU:
25187077
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
779608

This 4 flute, square profile offering of Backdraft Cutters is optimized for cleaning up the bottom corner of pockets, and features a backdraft angle to reduce rubbing.

  • Designed to clean up bottom corner of pockets while backdraft angle minimizes rubbing
  • 4 helical flutes (20 Degree helix)
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1250" (1/8)
Neck Diameter (Inch)0.1170"
Length of Cut (Inch)0.1870" (3/16)
Overall Reach (Inch)0.6250" (5/8)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
Angle per Side3.0
Included Angle6.0
LOC Multiple1.5x
Reach Multiple5x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated
