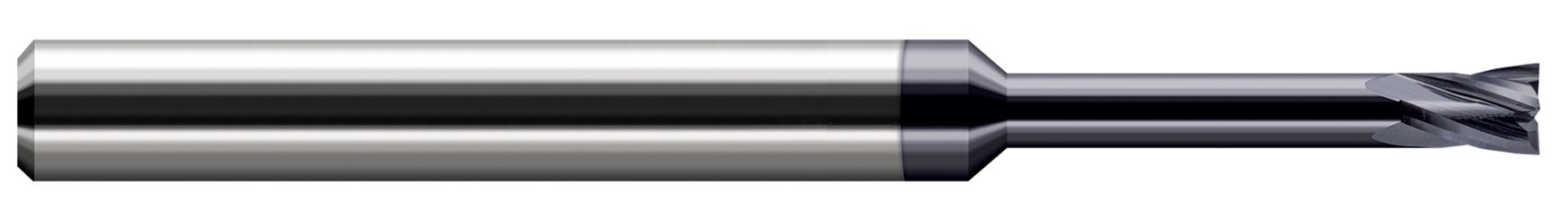

Harvey Tool 780808 | 1/8" Diameter x 1/8" Shank x 3/16" LOC x 2-1/2" OAL 4 Flute Uncoated Carbide Square End Mill

$51.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25187236
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
780808

This 4 flute, square profile offering of Backdraft Cutters is optimized for cleaning up the bottom corner of pockets, and features a backdraft angle to reduce rubbing.

  • Designed to clean up bottom corner of pockets while backdraft angle minimizes rubbing
  • 4 helical flutes (20 Degree helix)
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1250" (1/8)
Neck Diameter (Inch)0.1170"
Length of Cut (Inch)0.1870" (3/16)
Overall Reach (Inch)0.6250" (5/8)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
Angle per Side1.0
Included Angle2.0
LOC Multiple1.5x
Reach Multiple5x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
