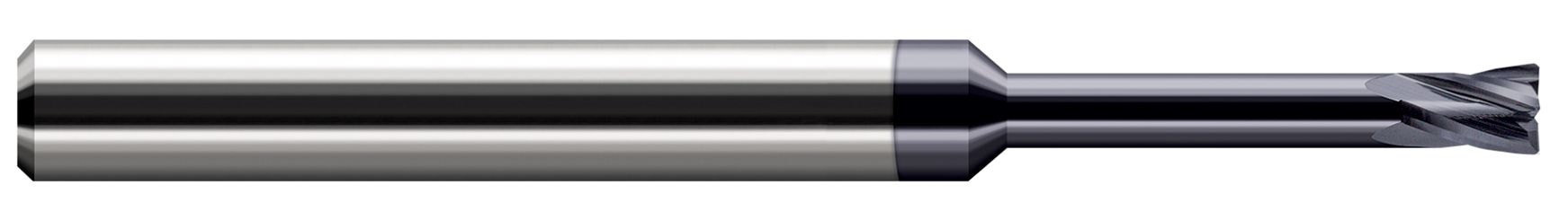

The corner radius profile featured in this offering of Backdraft Cutters adds strength and wear resistance to the cutting tool. This fully stocked, solid carbide offering is designed to clean up the bottom corner of pockets, while a backdraft angle minimizes rubbing.
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.2380" |
| Length of Cut (Inch) | 0.3750" (3/8) |
| Overall Reach (Inch) | 1.2500" (1-1/4) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 4 |
| Corner Radius | 0.0100" |
| Angle per Side | 0.5 |
| Included Angle | 1.0 |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C3 |
