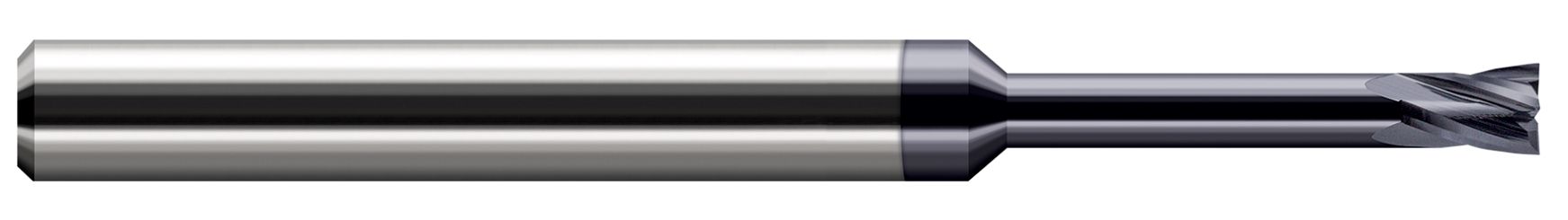

Harvey Tool 781412-C3 | 3/16" Diameter x 3/16" Shank x 0.2850" LOC x 2-1/2" OAL 4 Flute AlTiN Coated Carbide Square End Mill

$74.00
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.1770"
Shank Diameter (Inch):
3/16"
Length of Cut (Decimal Inch):
0.2850"
Overall Reach (Inch):
1"
Overall Reach (Decimal Inch):
1.0000"
Included Angle:
1.0 Degree
Number of Flutes:
4
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
interval quantity:
1
SKU:
25186585
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
781412-C3

Related Products

This 4 flute, square profile offering of Backdraft Cutters is optimized for cleaning up the bottom corner of pockets, and features a backdraft angle to reduce rubbing.

  • Designed to clean up bottom corner of pockets while backdraft angle minimizes rubbing
  • 4 helical flutes (20 Degree helix)
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1870" (3/16)
Neck Diameter (Inch)0.1770" (4.5 mm)
Length of Cut (Inch)0.2850"
Overall Reach (Inch)1.0000" (1)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
Angle per Side0.5
Included Angle1.0
LOC Multiple1.5x
Reach Multiple5x
Shank Diameter (Inch)0.1875" (3/16)
Coating/FinishC3
