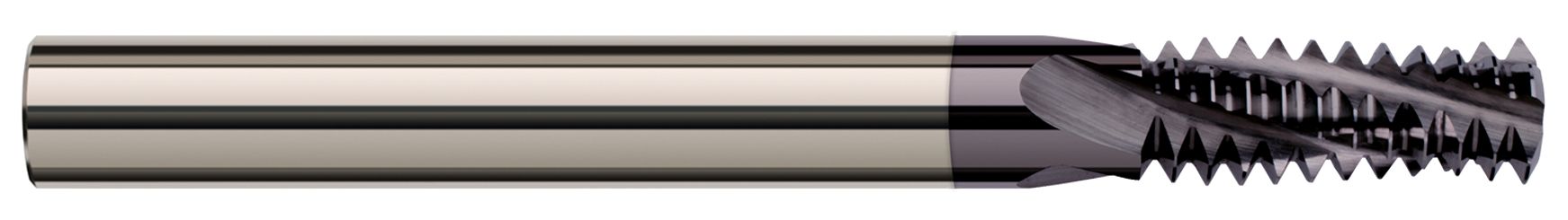

This offering of Harvey Tool Thread Milling Cutters - Multi-Form is engineered to create internal and external National Pipe Taper (N,P.T.F.) threads. These helically fluted, solid carbide tools can cut both right and left hand threads.
- Cuts internal and external 60° National Pipe Taper (N.P.T.F.) threads
- Mills right hand and left hand threads
- Helical flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.4950" |
| Length of Cut (Inch) | 0.8750" (7/8) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Number of Flutes | 4 |
| Angle per Side | 1°47' |
| Included Angle | 60 |
| Size | 1/2, 3/4-14 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.4950"
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Included Angle:
60 Degree
Number of Flutes:
4
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
C3
