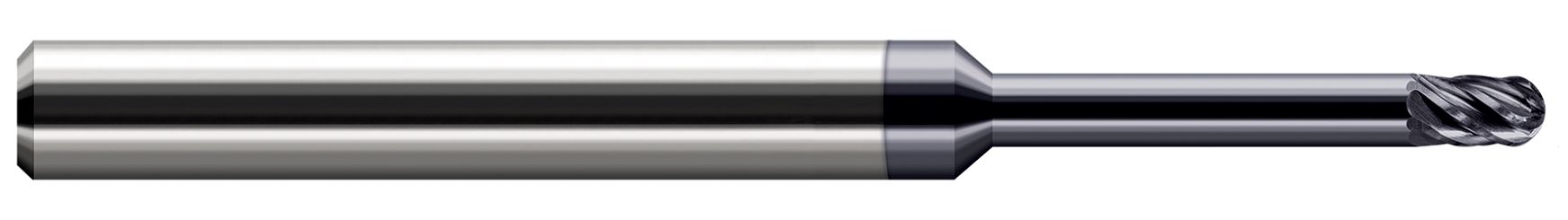

Harvey Tool 786231-C6 | 1/32" Diameter x 1/4" Shank x 3/64" LOC x 2-1/2" OAL 6 Flute AlTiN Nano Coated Carbide Ball End Mill

$83.70
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0300"
Shank Diameter (Inch):
1/4"
Length of Cut (Inch):
3/64"
Length of Cut (Decimal Inch):
0.0470"
Overall Reach (Inch):
5/32"
Overall Reach (Decimal Inch):
0.1560"
Number of Flutes:
6
Finish/Coating:
C6
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
interval quantity:
1
SKU:
25186301
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
786231-C6

Related Products

Designed to mill hardened tool, die, and mold steels up to 55Rc, this 6 flute Harvey Tool features a variable helix design for improved slotting and roughing, and stub flutes for maximum rigidity. Now offered in our latest generation of AlTiN Nano coating for superior hardness and heat resistance.

  • Designed to mill hardened tool, die, and mold steels up to 55Rc
  • Also excellent for stainless steel, Inconel, titanium, and other high temperature alloys
  • 6 flute, variable helix design (approx. 37 Degree) for improved slotting and roughing
  • Stub flute for maximum rigidity
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Increased shank diameter to maintain strength and stiffness
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0310" (1/32)
Neck Diameter (Inch)0.0300"
Length of Cut (Inch)0.0470" (3/64)
Overall Reach (Inch)0.1560" (5/32)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes6
LOC Multiple1.5x
Reach Multiple5x
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC6
