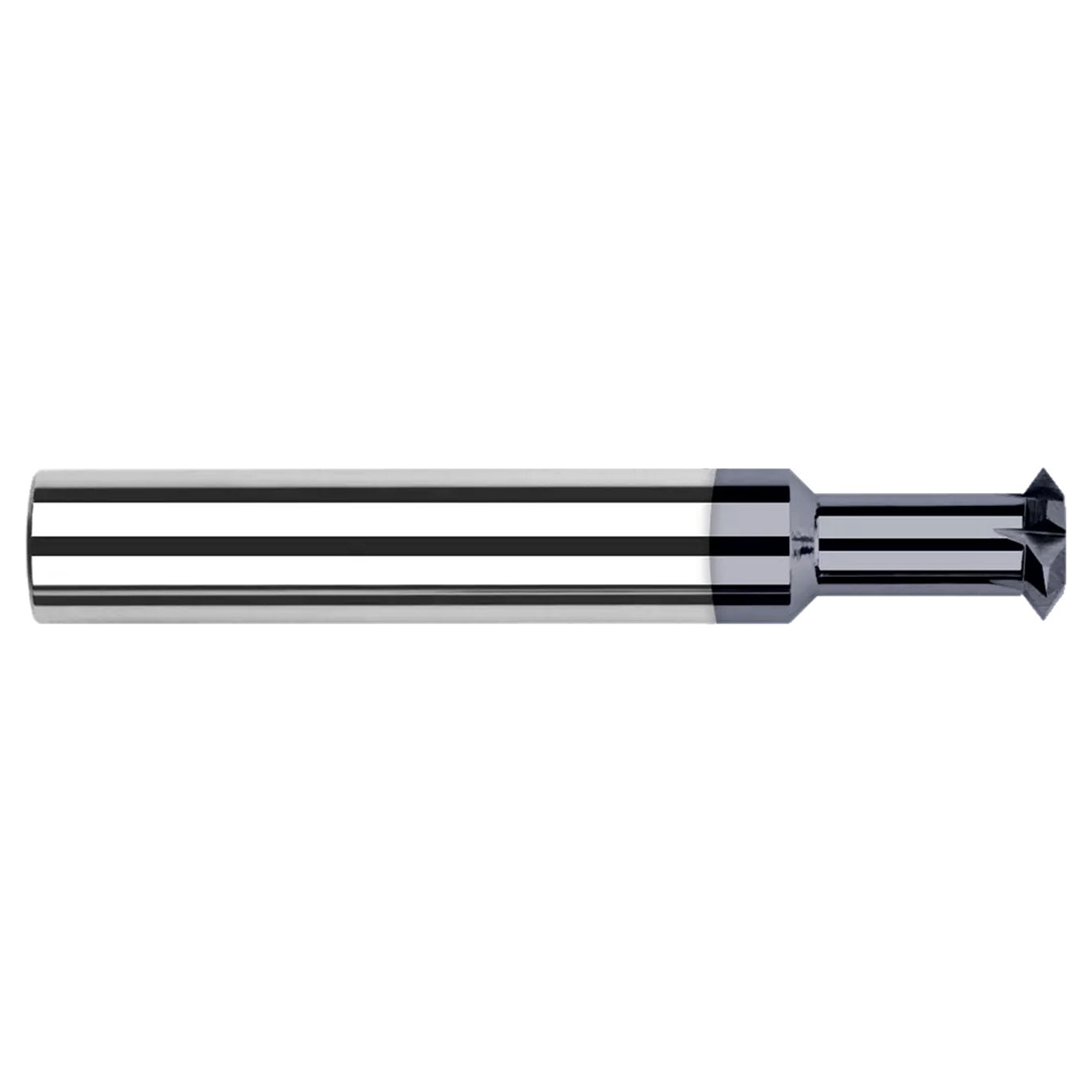

Harvey Tool 792978 | 0.0780" (5/64) Diameter x 0.0390" Width x 0.1250" (1/8) Shank x 90 Degree Uncoated Carbide Double Angle Cutter

$60.00
SKU:
25211445
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number792978
Cutter Diameter (Inch)0.0780" (5/64)
Neck Diameter (Inch)0.0390" (1 mm)
Cutter Width (Inch)0.0390"
Neck Length (Inch)0.3120" (5/16)
Overall Length (Inch)1.5000" (1-1/2)
Angle per Side45
Included Angle90
Flutes4
TypeI
Shank Diameter (Inch)0.1250" (1/8)
CoatingUncoated
