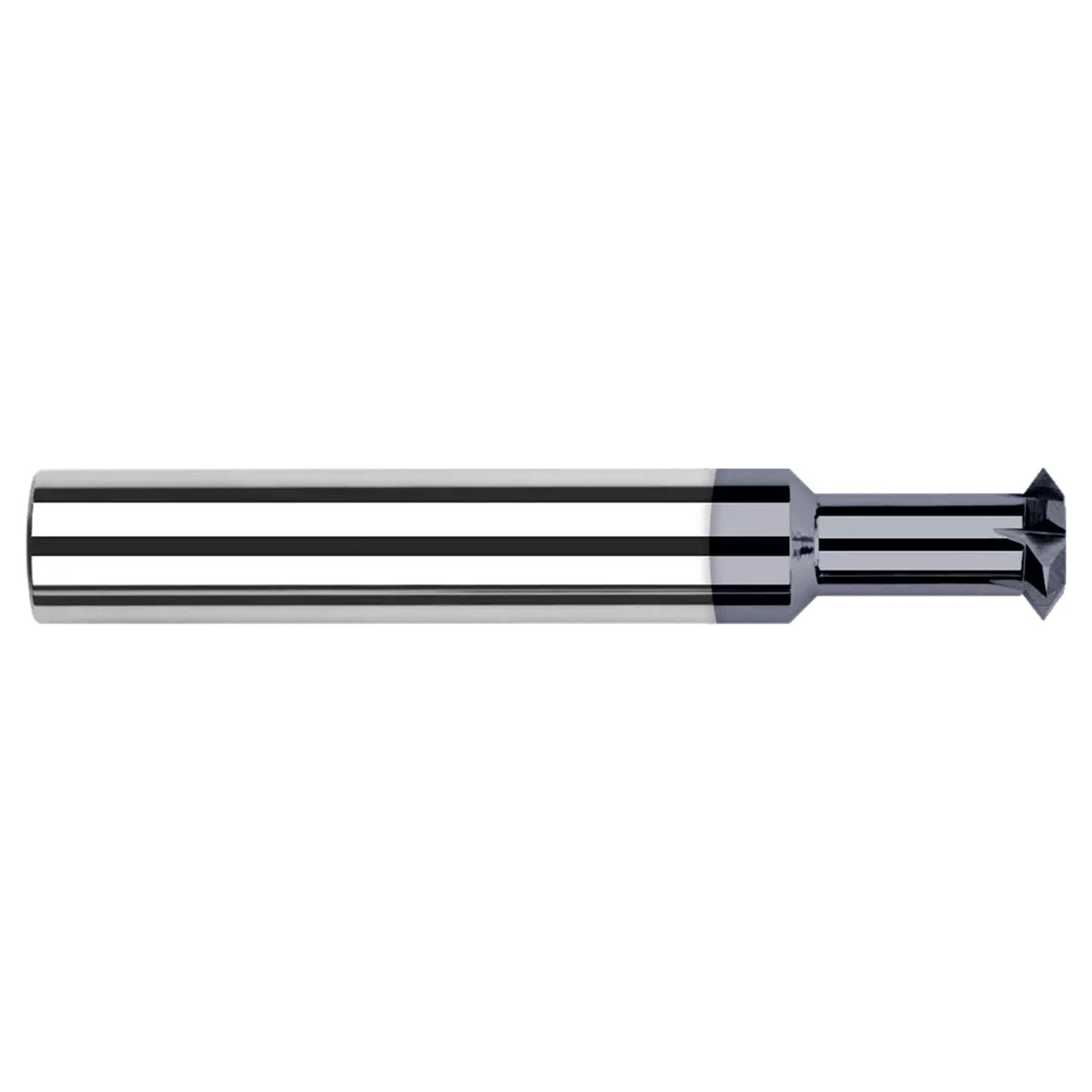

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations
- Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
- Reduced neck for long reach machining
- Tip of included angle ground to a point
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 792978-C3 |
| Cutter Diameter (Inch) | 0.0780" (5/64) |
| Neck Diameter (Inch) | 0.0390" (1 mm) |
| Cutter Width (Inch) | 0.0390" |
| Neck Length (Inch) | 0.3120" (5/16) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 4 |
| Type | I |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/64"
Cutter Diameter (Decimal Inch):
0.0780"
Neck Diameter (Decimal Inch):
0.0390"
Included Angle:
90 Degree
Number of Flutes:
4
Cutter Width (Decimal Inch):
0.0390"
Neck Length (Inch):
5/16"
Neck Length (Decimal Inch):
0.3120"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
