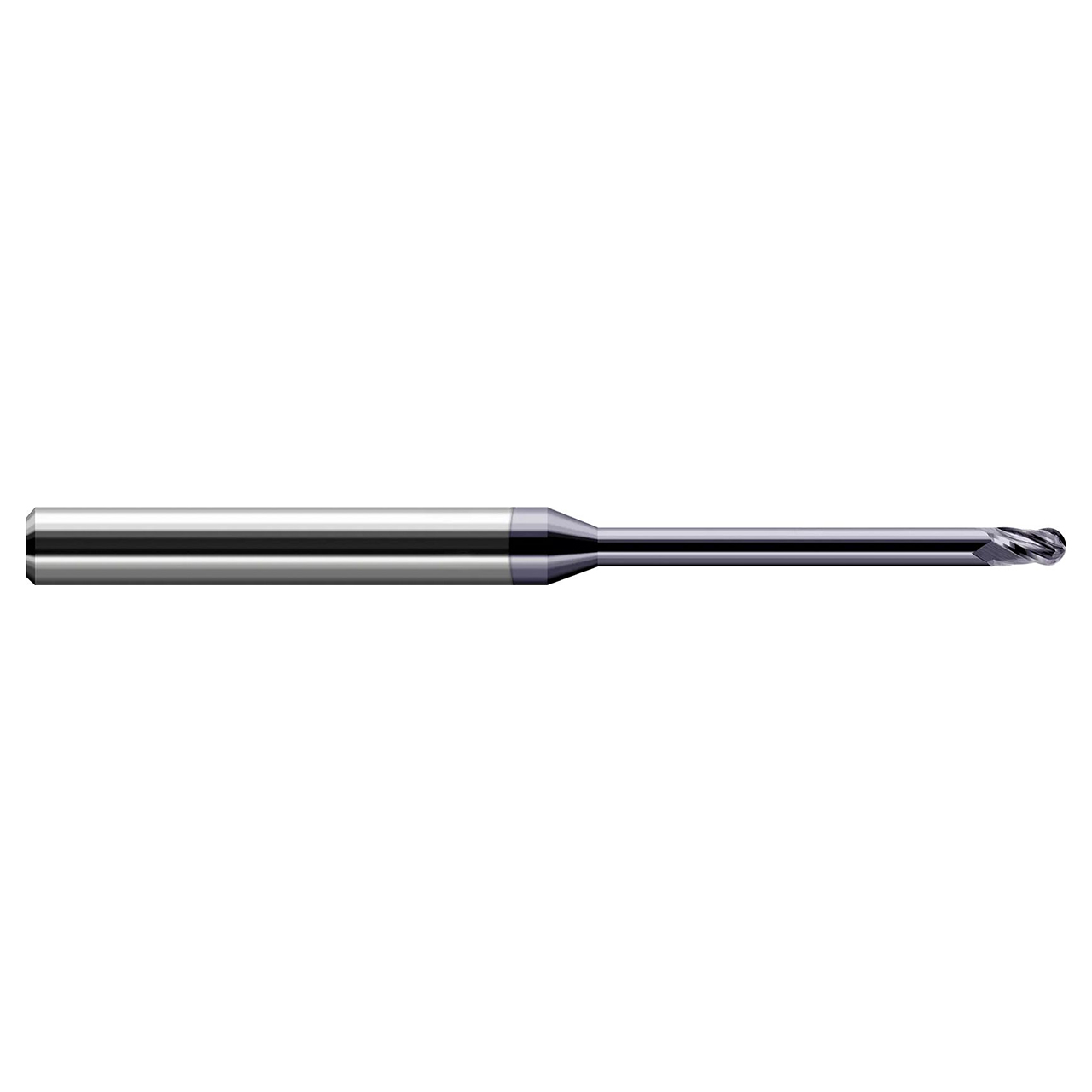

The stub flutes on this miniature end mills - ball - long reach, stub flute collection of Harvey Tool end mills provides maximum rigidity, while its reduced neck diameter helps to avoid heeling during machining.
Features- Long length design for deep cavities, up to 8 Inch overall length
- Stub flutes for maximum rigidity
- Length of cut = 1½ x diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 801378 |
| Cutter Diameter (Inch) | 0.0780" (5/64) |
| Neck Diameter (Inch) | 0.0765" |
| Length of Cut (Inch) | 0.1180" |
| Overall Reach (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Number of Flutes | 4 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (8x) |
| Coating | Uncoated |
| Profile | Ball |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0765"
Shank Diameter (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1180"
Overall Reach (Inch):
5/8"
Overall Reach (Decimal Inch):
0.6250"
Number of Flutes:
4
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
