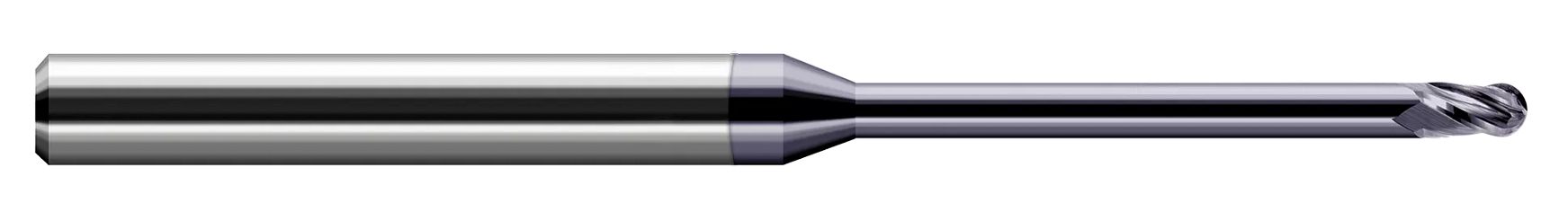

Harvey Tool 801416-C3 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 4" OAL 4 Flute AlTiN Coated Carbide Ball End Mill

$59.50
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25186080
Weight:
0.10 LBS
Shipping:
Calculated at Checkout

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.2500" (1/4)
Neck Diameter (Inch)0.2460"
Length of Cut (Inch)0.3750" (3/8)
Overall Reach (Inch)2.0000" (2)
Overall Length (Inch)4.0000" (4)
Number of Flutes4
LOC Multiple1.5x
Reach Multiple8x
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC3
