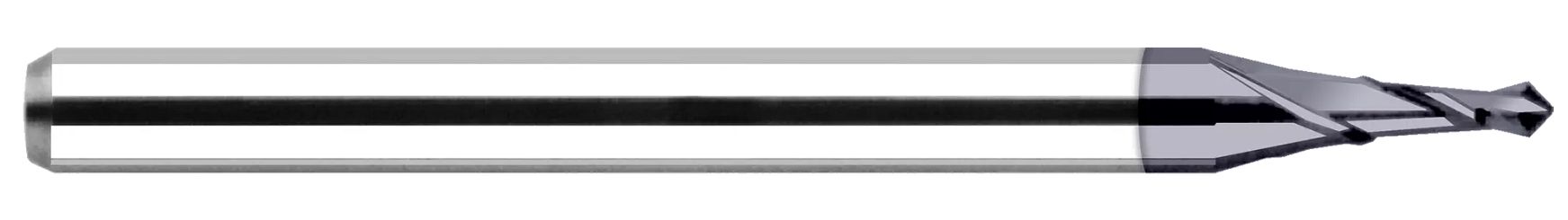

Harvey Tool 804116 | 140 Degree Included Angle x 1/4" Shank Diameter x 2-1/2" OAL 2 Flute Uncoated Carbide Spotting Drill

$37.80
Brand:
Harvey Tool
Drill Diameter (Inch):
1/4"
Drill Diameter (Decimal Inch):
0.2500"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Included Angle:
140 Degree
Type:
I
Number of Flutes:
2
Finish/Coating:
Uncoated
SKU:
25174758
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
804116

Harvey Tool's comprehensive selection of Spotting Drills.

  • 90 Degree available in long length.
  • Thinned Web to Reduce Walking
  • Self-Centering Point Geometry
  • 2 Flutes
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Drill Diameter (Inch)0.2500" (1/4)
Flute Length (Inch)0.7500" (3/4)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes2
Angle per Side70
Included Angle140
LOC Multiple3x
Web Thickness0.0180"
TypeI
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishUncoated
