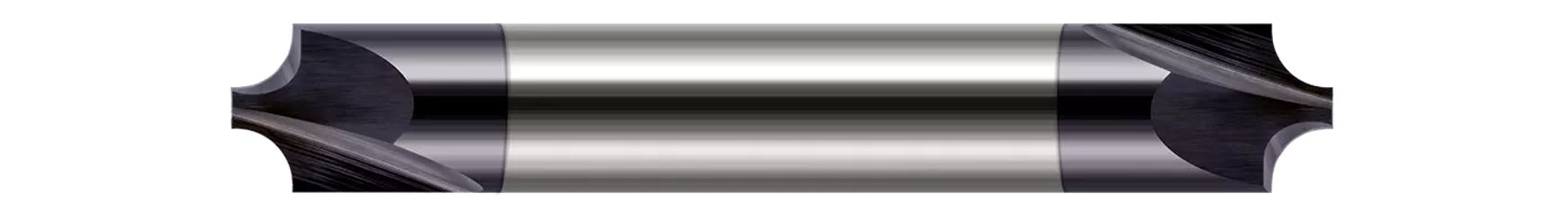

This Corner Rounding End Mills - 3 Flute - Flared Harvey Tool product selection features tooling with 5 Degree flares tangent at the pilot.
- Single end
- Cutting on radius and end only (not center cutting)
- 5 Degree flares tangent at pilot and shoulder to avoid steps
- Axial depth of cut = radius plus .005"
- 3 flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Pilot Diameter (Inch) | 0.0460" |
| Length of Cut (Inch) | 0.0980" |
| Overall Length (Inch) | 2.0000" (2) |
| Radius | 0.0930" (3/32) |
| Number of Flutes | 4 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C3 |
| Pilot Flare | 5 |
| Shoulder Flare | 5 |
| Double Ended | Yes |
