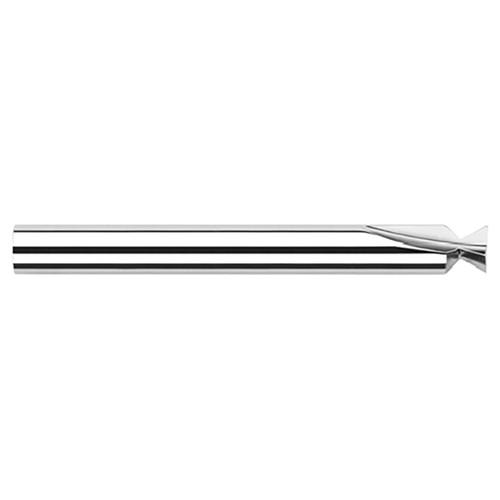

With its reduced neck for long reach machining operations, and its corner radius profile for improved strength, this solid carbide offering of Dovetail Cutters is built to last.
- Reduced neck for long reach machining
- Corner radius for improved strength
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.4950" |
| Neck Diameter (Inch) | 0.2610" |
| Length of Cut (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 3 |
| Neck Radius | 0.0050" |
| Angle per Side | 25 |
| Included Angle | 50 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.4950"
Neck Diameter (Decimal Inch):
0.2610"
Included Angle:
50 Degree
Number of Flutes:
3
Length of Cut (Decimal Inch):
0.2500"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
Uncoated
