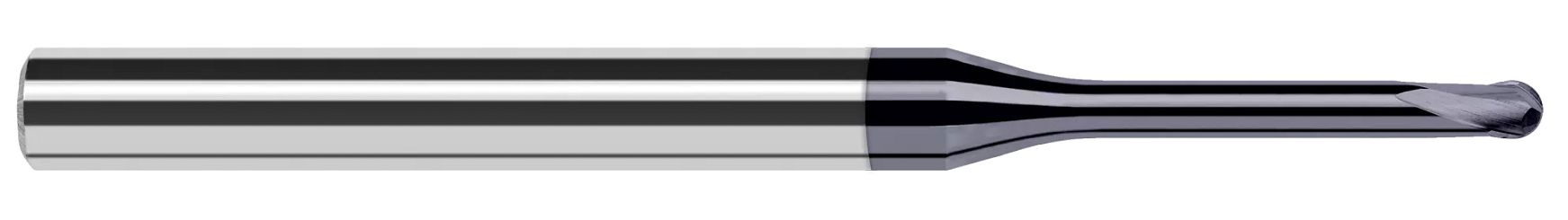

Harvey Tool 812931-C6 | 1/32" Diameter x 1/4" Shank x 0.0250" LOC x 2-1/2" OAL 3 Flute AlTiN Nano Coated Carbide Ball End Mill

$73.10
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25175007
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Designed to mill hardened tool, die, and mold steels up to 55Rc, this 6 flute Harvey Tool features a variable helix design for improved slotting and roughing, and stub flutes for maximum rigidity. Now offered in our latest generation of AlTiN Nano coating for superior hardness and heat resistance.

  • Designed to mill hardened tool, die, and mold steels up to 55Rc
  • Also excellent for stainless steel, Inconel, titanium, and other high temperature alloys
  • 6 flute, variable helix design (approx. 37 Degree) for improved slotting and roughing
  • Stub flute for maximum rigidity
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Increased shank diameter to maintain strength and stiffness
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0310" (1/32)
Neck Diameter (Inch)0.0290"
Length of Cut (Inch)0.0250"
Overall Reach (Inch)0.1560" (5/32)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes3
LOC Multiple0.8x
Reach Multiple5x
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC6

Technical Files

Safety Data Sheet North America (SDS NA)
