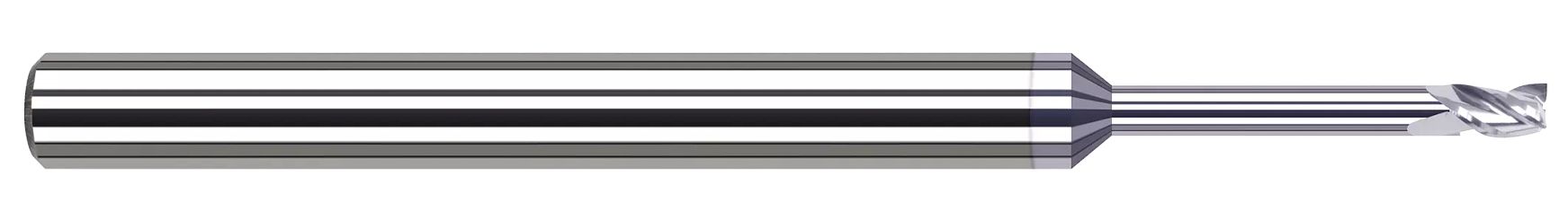

Optimized for aluminum and aluminum alloys with excellent performance in copper, brass, and bronze alloys, Harvey Tool's Variable Helix End Mills for Aluminum Alloys - Square reduces chatter and harmonics.
- Variable helix design (approx. 42 Degree) reduces chatter and harmonics, and increases material removal rates
- h6 shank tolerance for high precision tool holders
- 3 flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0930" (3/32) |
| Neck Diameter (Inch) | 0.0915" |
| Length of Cut (Inch) | 0.1400" (9/64) |
| Overall Reach (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| LOC Multiple | 1.5x |
| Reach Multiple | 4x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
Technical Files
Safety Data Sheet North America (SDS NA)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0915"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1400"
Overall Reach (Inch):
3/8"
Overall Reach (Decimal Inch):
0.3750"
Number of Flutes:
3
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
