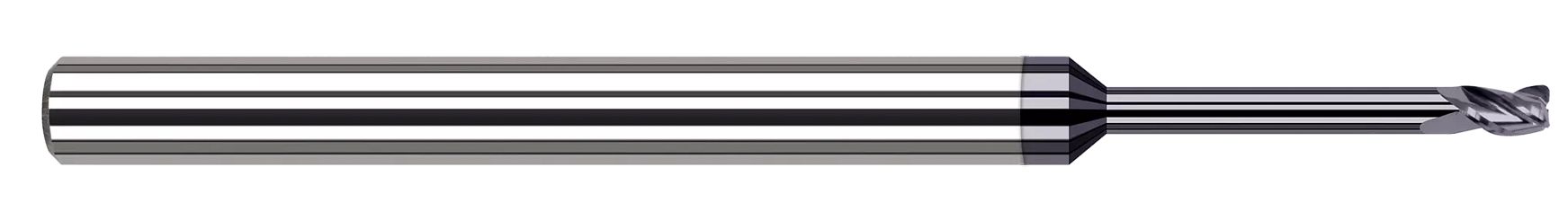

Offered fully stocked in cutter diameter sizes ranging from .2 mm to 1/2", this comprehensive selection of Harvey Tool corner radius profile Variable Helix End Mills is optimized for readily machinable medium alloy steels, stainless steels, and tool steels.
- Variable helix design reduces chatter and harmonics, and increases material removal rates
- AlTiN Coated for improved lubricity and heat resistance
- h6 shank tolerance for shrink fit holders
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0620" (1/16) |
| Neck Diameter (Inch) | 0.0605" |
| Length of Cut (Inch) | 0.0930" (3/32) |
| Overall Reach (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| Corner Radius | 0.0050" |
| LOC Multiple | 1.5x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/16"
Cutter Diameter (Decimal Inch):
0.0620"
Neck Diameter (Decimal Inch):
0.0605"
Length of Cut (Inch):
3/32"
Length of Cut (Decimal Inch):
0.0930"
Overall Reach (Inch):
1/2"
Overall Reach (Decimal Inch):
0.5000"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0050"
Number of Flutes:
3
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
