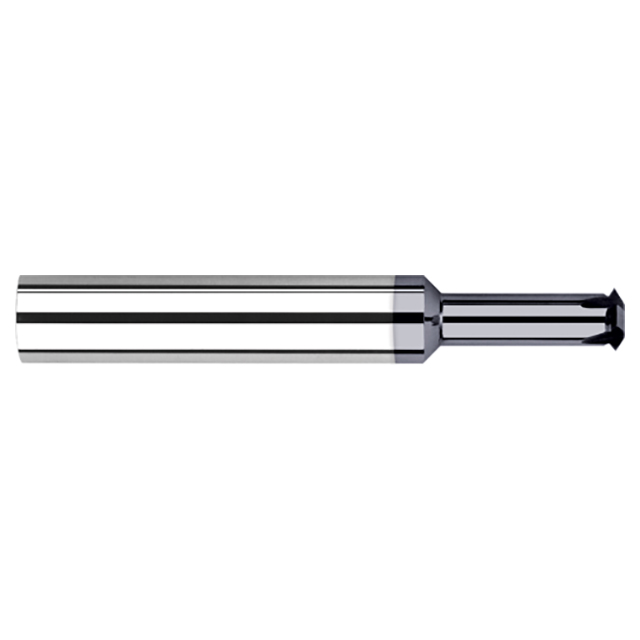

Harvey Tool 821430-C3 | 60 Degree Included Angle x 0.1200" Diameter x 1/4" Shank x 2-1/2" OAL 4 Flute AlTiN Coated Carbide Single Profile Thread Mill

$98.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1200"
Max Depth of Thread (Decimal Inch):
0.5620"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
0.5620"
Ships:
From Partner Facility
SKU:
25166578
UPC:
Weight:
0.05 LBS
Shipping:
Free Shipping
Product Specifications
Cutter Diameter (Decimal Inch) 0.1200"
Neck Diameter (Decimal Inch) 0.0700"
Length of Cut (Decimal Inch) 0.0290"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Max Depth of Thread (Inch) 9/16"
Max Depth of Thread (Decimal Inch) 0.5620"
Angle per Side 30 Degree
Included Angle 60 Degree
Number of Flutes 4
Size (Inch) #8
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating AlTiN
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
