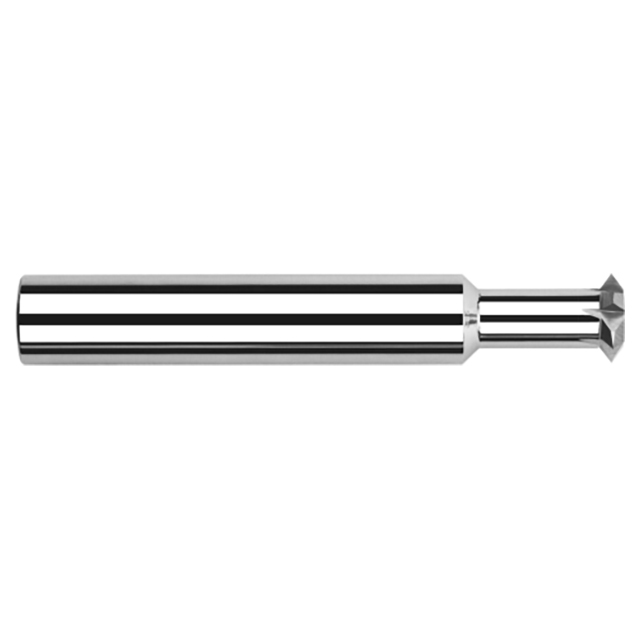

Product Specifications
| Cutter Diameter (Inch) | 3/8" |
| Cutter Diameter (Decimal Inch) | 0.3750" |
| Neck Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.2500" |
| Cutter Width (Inch) | 1/8" |
| Cutter Width (Decimal Inch) | 0.1250" |
| Neck Length (Inch) | 1-3/4" |
| Neck Length (Decimal Inch) | 1.7500" |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Angle per Side | 45 Degree |
| Included Angle | 90 Degree |
| Number of Flutes | 6 |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | Uncoated |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
90 Degree
Cutting Diameter (Inch):
3/8"
Cutting Diameter (Decimal Inch):
0.3750"
Cutting Width (Inch):
1/8"
Cutting Width (Decimal Inch):
0.1250"
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Ships:
From Partner Facility
IsDiscontinued:
