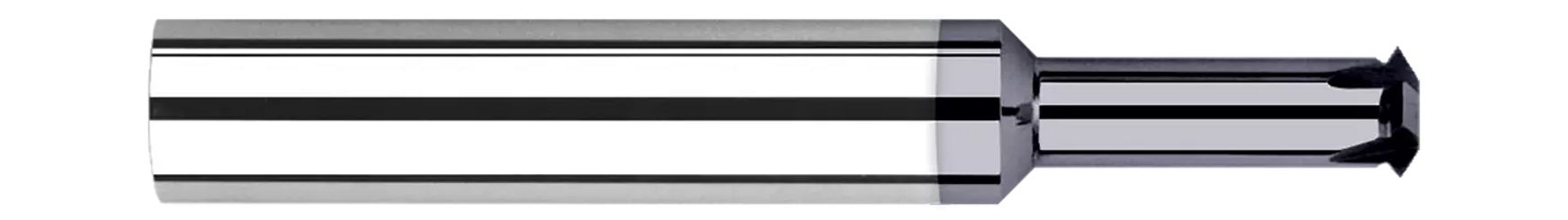

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.
- Single thread form – can mill multiple pitches
- Cuts internal and external 60 Degree UN threads
- Mills right hand and left hand threads
- Tip of included angle ground to a point
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.4950" |
| Neck Diameter (Inch) | 0.3250" |
| Length of Cut (Inch) | 0.0980" |
| Overall Length (Inch) | 3.0000" (3) |
| Max Depth of Thread (Inch) | 1.2500" (1-1/4) |
| Number of Flutes | 6 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Size | 3/4 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.4950"
Neck Diameter (Decimal Inch):
0.3250"
Length of Cut (Decimal Inch):
0.0980"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Included Angle:
60 Degree
Number of Flutes:
6
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
Uncoated
