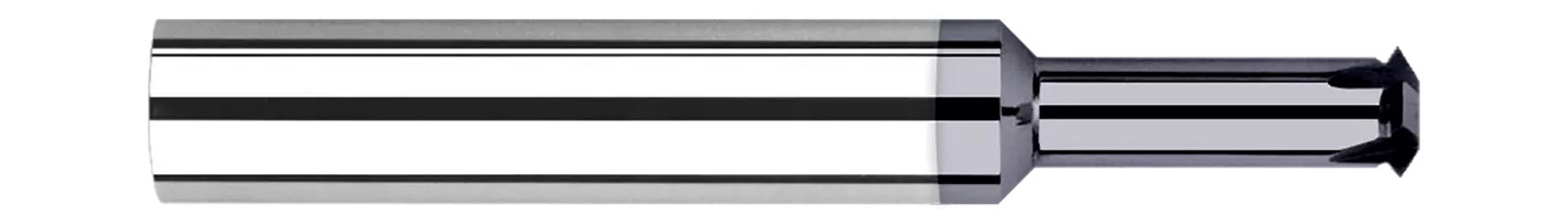

Harvey Tool 822780-C3 | 3/4 Thread 0.4950" Diameter x 0.0980" LOC x 1/2" Shank 6 Flute 60 Degree Included Angle AlTiN Coated Carbide Single Profile Thread Mill

$162.70
Brand:
Harvey Tool
Cutting Diameter (Decimal Inch):
0.4950"
Neck Diameter (Decimal Inch):
0.3250"
Number of Flutes:
6
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
interval quantity:
1
SKU:
25187407
UPC:
Weight:
0.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
822780-C3

Related Products

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.

  • Single thread form – can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.4950"
Neck Diameter (Inch)0.3250"
Length of Cut (Inch)0.0980"
Overall Length (Inch)3.0000" (3)
Max Depth of Thread (Inch)1.2500" (1-1/4)
Number of Flutes6
Angle per Side30
Included Angle60
Size3/4
Shank Diameter (Inch)0.5000" (1/2)
Coating/FinishC3
