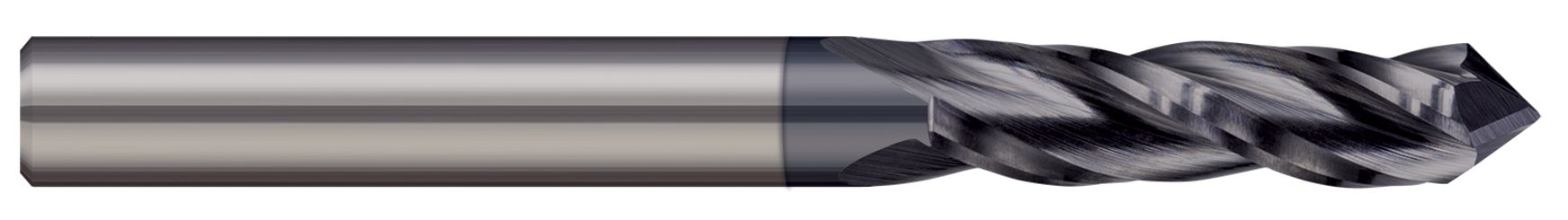

Designed for chamfering, milling, and some spotting applications, this Harvey Tool offering of fully stocked Drill / End Mills.
- Designed for chamfering, milling, and some spotting applications
- Not recommended for drilling steel
- 2 flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 3 |
| Angle per Side | 45 |
| Included Angle | 90 |
| LOC Multiple | 2x |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Shank Diameter (Inch):
1/2"
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Included Angle:
90 Degree
Number of Flutes:
3
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
