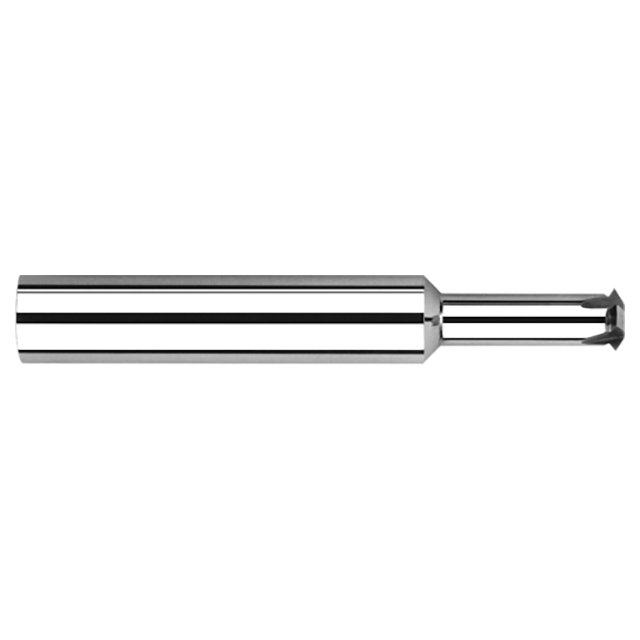

Product Specifications
| Cutter Diameter (mm) | 4.000mm |
| Neck Diameter (mm) | 2.40mm |
| Length of Cut (mm) | 0.924mm |
| Overall Length (mm) | 50.000mm |
| Max Depth of Thread (mm) | 19.000mm |
| Angle per Side | 30 Degree |
| Included Angle | 60 Degree |
| Number of Flutes | 4 |
| Reach Multiple | 8x |
| Size (mm) | M5 |
| Shank Diameter (mm) | 4.000mm |
| Metric (Yes/No) | Yes |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | Uncoated |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (mm):
4.00mm
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (mm):
4mm
Overall Length (mm):
19mm
Ships:
From Partner Facility
