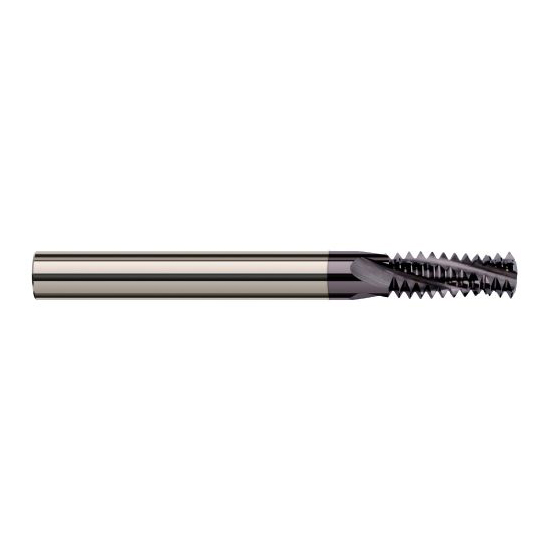

Harvey Tool 836776-C6 | 7/16"-20 Thread x 0.3350" Cutting Diameter 4FL AlTiN Nano Coated Carbide Helical Flute Thread Mill

Harvey Tool 836776-C6 | 7/16"-20 Thread x 0.3350" Cutting Diameter 4FL AlTiN Nano Coated Carbide Helical Flute Thread Mill

SKU: 25120088 Weight: 0.17 LBS Minimum Purchase: 1 unit
UPC:
$415.80
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features
  • Designed for threading hardened steels 46-68 Rc
  • Cuts internal and external 60 Degree UN threads
  • Mill right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Variable helix design reduces chatter and harmonics and produces more accurate threads
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Select carbide grade for maximum tool life
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 7/16-20
Milling Diameter (Decimal Inch) 0.3350"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (Inch) 3/8"
Number of Flutes 4
Length of Cut (Decimal Inch) 0.8750"
Length of Cut (Inch) 7/8"
Overall Length (Decimal Inch) 3.5000"
Overall Length (Inch) 3-1/2"
Finish/Coating AlTiN Nano
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
