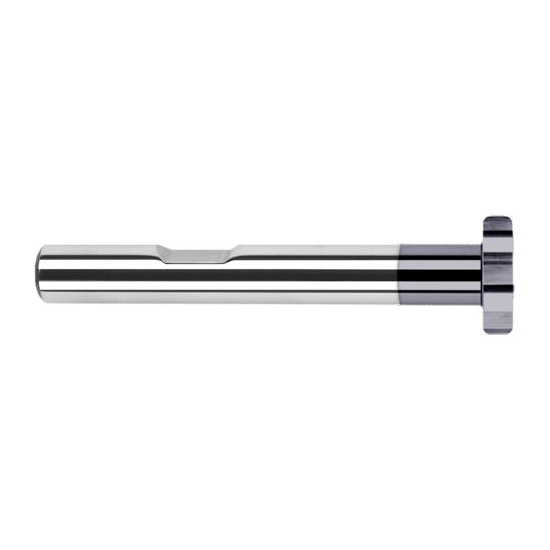

Harvey Tool 838550-C3 | 1-1/2" Diameter x 1/8" Width x 3/4" Shank 0.0300" Corner Radus AlTiN Coated Solid Carbide Straight Tooth Keyseat Cutter

$225.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Milling Diameter (Inch):
1-1/2"
Milling Diameter (Decimal Inch):
1.5000"
Cutting Width (Inch):
1/8"
Cutting Width (Decimal Inch):
0.1250"
Corner Radius:
0.0300"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Overall Length (Inch):
3-3/8"
Overall Length (Decimal Inch):
3.3750"
Tooth Configuration:
Straight
Ships:
From Partner Facility
SKU:
25111054
UPC:
Weight:
0.50 LBS
Shipping:
Free Shipping
Harvey Tool 838550-C3 | 1-1/2" Diameter x 1/8" Width x 3/4" Shank 0.0300" Corner Radus AlTiN Coated Solid Carbide Straight Tooth Keyseat Cutter
Product Specifications
Mill Diameter (Decimal Inch) 1.5000"
Mill Diameter (Inch) 1-1/2"
Cutter Width (Decimal Inch) 0.1250"
Cutter Width (Inch) 1/8"
Overall Length (Decimal Inch) 3.3750"
Overall Length (Inch) 3-3/8"
Radial Depth Of Cut (Decimal Inch) 0.3650"
Corner Radius (Decimal Inch) 0.0300"
Number of Flutes 16
Shank Diameter (Decimal Inch) 0.7500"
Shank Diameter (Inch) 3/4"
Shank Length (Decimal Inch) 3.2500"
Shank Length (Inch) 3-1/4"
Coating AlTiN
Top Corner Radius 0.03

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Milling Diameter (Inch):
1-1/2"
Milling Diameter (Decimal Inch):
1.5000"
Cutting Width (Inch):
1/8"
Cutting Width (Decimal Inch):
0.1250"
Corner Radius:
0.0300"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Overall Length (Inch):
3-3/8"
Overall Length (Decimal Inch):
3.3750"
Tooth Configuration:
Straight
Ships:
From Partner Facility
