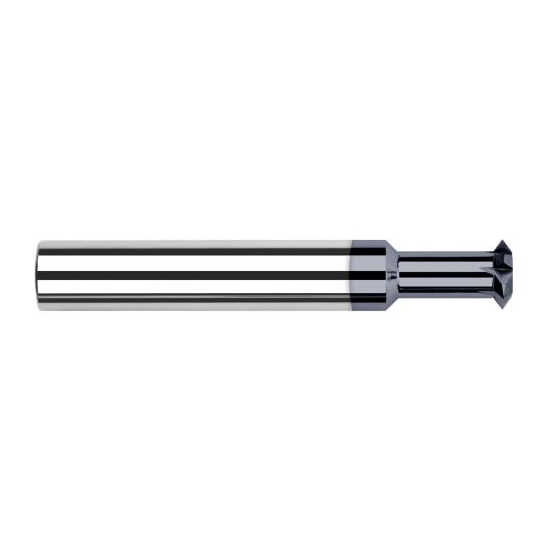

Harvey Tool 838812-C3 | 3/16" Diameter x 0.0950" Width x 3/16" Shank 90 Degree Included Angle AlTiN Coated Solid Carbide Pointed Double Angle Shank Cutter

$59.00
Ships:
From Partner Facility
Brand:
Harvey Tool
Included Angle:
90 Degree
Mill Diameter (Inch):
3/16"
Cutting Width (Decimal Inch):
0.0950"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/16"
Ships:
From Partner Facility
SKU:
25106929
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Product Specifications
Mill Diameter (Decimal Inch) 0.1875"
Mill Diameter (Inch) 3/16"
Neck Diameter (Decimal Inch) 0.0620"
Neck Diameter (Inch) 1/16"
Cutter Width (Decimal Inch) 0.0950"
Neck Length (Decimal Inch) 0.3120"
Neck Length (Inch) 5/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (Inch) 2"
Angle Per Side 45 Degree
Included Angle 90 Degree
Number of Flutes 6
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Coating AlTiN
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Single or Double Angle Single
Weldon (Yes/No) No
Coolant Through (Yes/No) No
