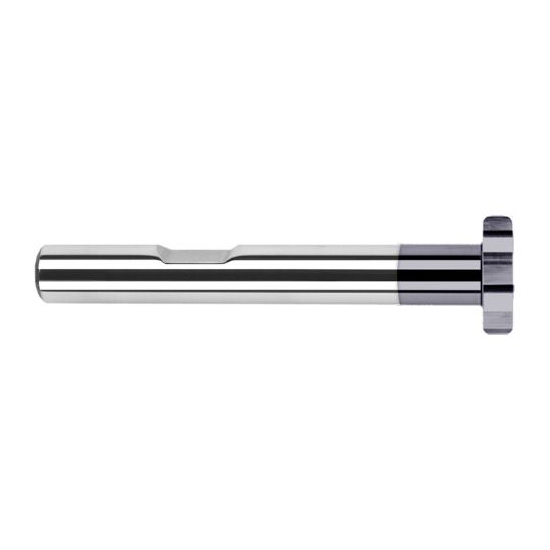

Harvey Tool 840330-C3 | 1" Diameter x 5/64" Width x 1/2" Shank 0.0050" Corner Radus AlTiN Coated Solid Carbide Straight Tooth Keyseat Cutter

$178.50
Ships:
From Partner Facility
Brand:
Harvey Tool
Milling Diameter (Inch):
1"
Milling Diameter (Decimal Inch):
1.0000"
Cutting Width (Inch):
5/64"
Cutting Width (Decimal Inch):
0.0780"
Corner Radius:
0.0050"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3-5/64"
Overall Length (Decimal Inch):
3.0780"
Tooth Configuration:
Straight
Ships:
From Partner Facility
SKU:
25111086
UPC:
Weight:
0.19 LBS
Shipping:
Free Shipping
Harvey Tool 840330-C3 | 1" Diameter x 5/64" Width x 1/2" Shank 0.0050" Corner Radus AlTiN Coated Solid Carbide Straight Tooth Keyseat Cutter
Product Specifications
Mill Diameter (Decimal Inch) 1.0000"
Mill Diameter (Inch) 1"
Cutter Width (Decimal Inch) 0.0780"
Cutter Width (Inch) 5/64"
Overall Length (Decimal Inch) 3.0780"
Overall Length (Inch) 3-5/64"
Radial Depth Of Cut (Decimal Inch) 0.2400"
Corner Radius (Decimal Inch) 0.0050"
Number of Flutes 12
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (Inch) 1/2"
Shank Length (Inch) 3"
Coating AlTiN
Top Corner Radius 0.005

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Milling Diameter (Inch):
1"
Milling Diameter (Decimal Inch):
1.0000"
Cutting Width (Inch):
5/64"
Cutting Width (Decimal Inch):
0.0780"
Corner Radius:
0.0050"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3-5/64"
Overall Length (Decimal Inch):
3.0780"
Tooth Configuration:
Straight
Ships:
From Partner Facility
