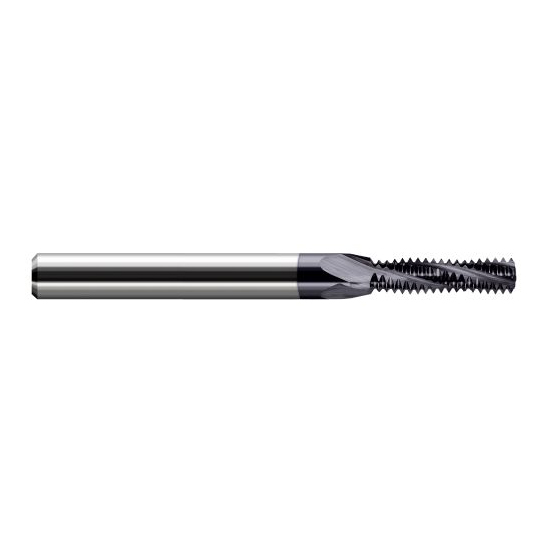

Harvey Tool 842907-C3 | M4-0.70 Thread 0.1240" Cutting Diameter 3FL AlTiN Coated Carbide Helical Flute Thread Mill

Harvey Tool 842907-C3 | M4-0.70 Thread 0.1240" Cutting Diameter 3FL AlTiN Coated Carbide Helical Flute Thread Mill

SKU: 25119921 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$225.90
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features
  • Designed for deep threaded applications
  • Larger cutter diameter for maximum strength
  • Due to increased cutting diameter, tools are designed to achieve 60% threads
  • Cuts internal 60 Degree, metric threads only
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size M4-0.70
Milling Diameter (Decimal Inch) 0.1240"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.4410"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Finish/Coating AlTiN
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
