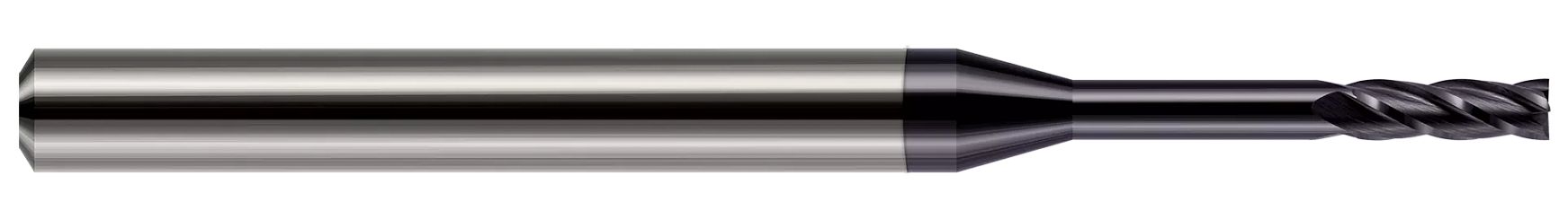

Harvey Tool 846178 | 5/64" Diameter x 1/8" Shank x 15/64" LOC x 2" OAL 4 Flute Uncoated Carbide Square End Mill

$42.40
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0765"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
15/64"
Length of Cut (Decimal Inch):
0.2340"
Overall Reach (Decimal Inch):
0.8000"
Number of Flutes:
4
Finish/Coating:
Uncoated
Neck Length (Decimal Inch):
0.5660"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
SKU:
25185974
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
846178

CNC ground in the USA, Harvey Tool's solid carbide Router Style Miniature End Mills are offered in 2 or 4 flute styles and feature a square profile, router style shank, and tighter overall length tolerances for quick and consistent CNC tool changes.

  • Router style shank and tight overall length for quick and consistent tool changes
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0780" (5/64)
Neck Diameter (Inch)0.0765"
Length of Cut (Inch)0.2340" (15/64)
Neck Length (Inch)0.5660"
Overall Reach (Inch)0.8000"
Overall Length (Inch)2.0000" (2)
Number of Flutes4
LOC Multiple3x
Reach Multiple10x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.0765"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
15/64"
Length of Cut (Decimal Inch):
0.2340"
Overall Reach (Decimal Inch):
0.8000"
Number of Flutes:
4
Finish/Coating:
Uncoated
Neck Length (Decimal Inch):
0.5660"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
