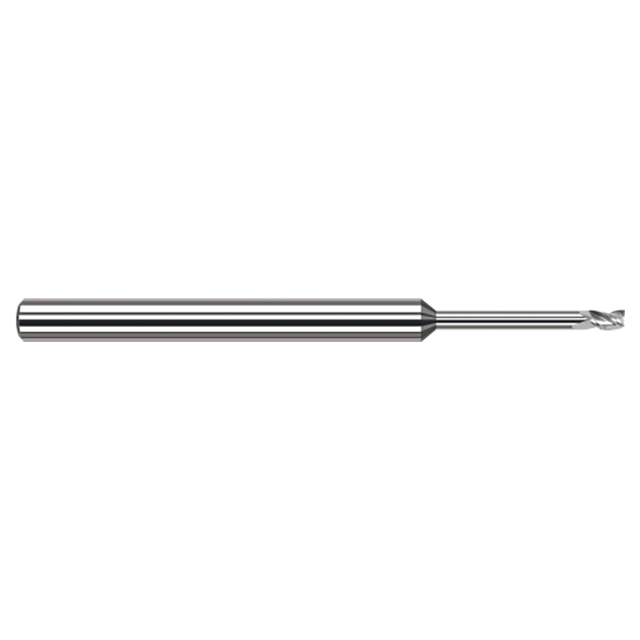

Harvey Tool 846820 | 0.0200" Diameter x 1/8" Shank x 0.0300" LOC x 2-1/2" OAL 3 Flute Uncoated Coated Square End Mill

$42.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Decimal Inch):
0.0200"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Decimal Inch):
0.0300"
Overall Reach (Decimal Inch):
0.1800"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Single or Double End:
Single
Center Cutting:
No
Ships:
From Partner Facility
SKU:
25118058
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Decimal Inch) 0.0200"
Length of Cut (Decimal Inch) 0.0300"
Overall Reach (Decimal Inch) 0.1800"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Number of Flutes 3
LOC Multiple 1.5x
Reach Multiple 9x
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating Uncoated
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
