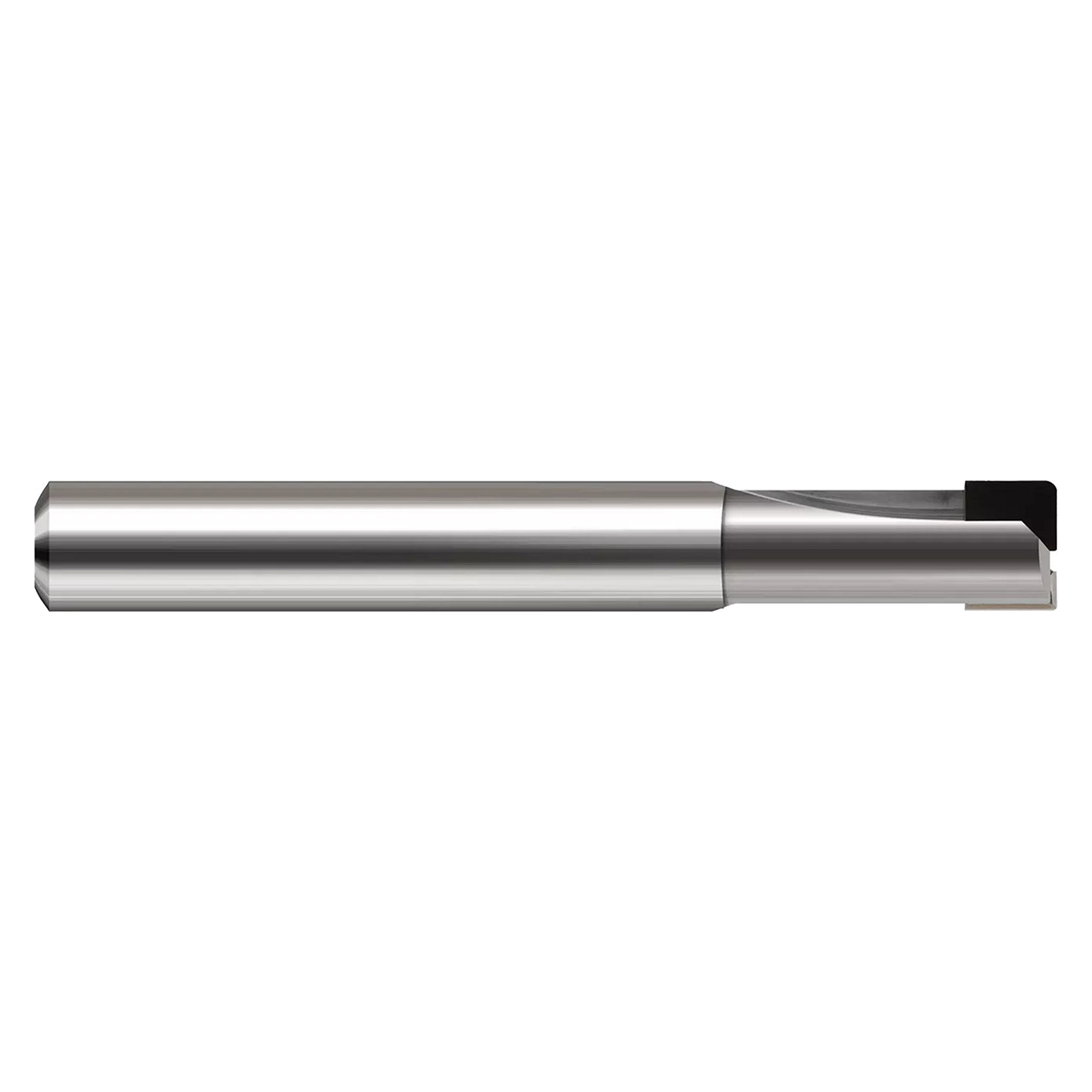

Product Specifications
| Manufacturer Part Number | 847332 |
| Cutter Diameter (Decimal Inch) | 0.500" |
| Cutter Diameter (Inch) | 1/2" |
| Neck Diameter (Decimal Inch) | 0.461" |
| Length of Cut (Decimal Inch) | 0.250" |
| Length of Cut (Inch) | 1/4" |
| Overall Reach (Decimal Inch) | 1.000" |
| Overall Reach (Inch) | 1" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Corner Radius (Decimal Inch) | 0.060" |
| Number of Flute | 2 |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Metric | No |
| Coating | PCD |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
2
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (mm):
6.35mm
Finish/Coating:
PCD
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Interval quantity:
1
