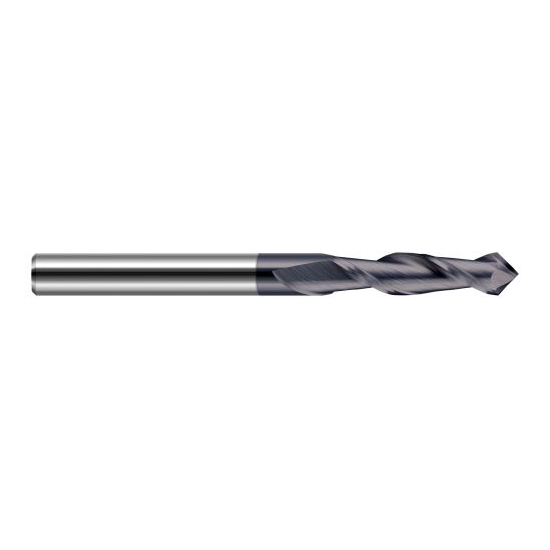

Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875" |
| Mill Diameter (Inch) | 3/16" |
| Length Of Cut (Decimal Inch) | 0.6250" |
| Length Of Cut (Inch) | 5/8" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Angle Per Side | 60 Degree |
| Included Angle | 120 Degree |
| Number of Flutes | 2 |
| LOC Multiple | 3x |
| Web Thickness (Decimal Inch) | 0.0090" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Metric | No |
| Coating | AlTiN Nano |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Single or Double Angle | Single |
| Weldon (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Material:
Solid Carbide
Point Angle:
120 Degree
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
2
Finish/Coating:
AlTiN Nano
Ships:
From Partner Facility
