Product Specifications
| Manufacturer Part Number | 858908 |
| Cutter Diameter (Decimal Inch) | 0.125" |
| Cutter Diameter (Inch) | 1/8" |
| Neck Diameter (Decimal Inch) | 0.115" |
| Length of Cut (Decimal Inch) | 0.250" |
| Length of Cut (Inch) | 1/4" |
| Overall Reach (Decimal Inch) | 0.500" |
| Overall Reach (Inch) | 1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Corner Radius (Decimal Inch) | 0.010" |
| Number of Flute | 1 |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | PCD |

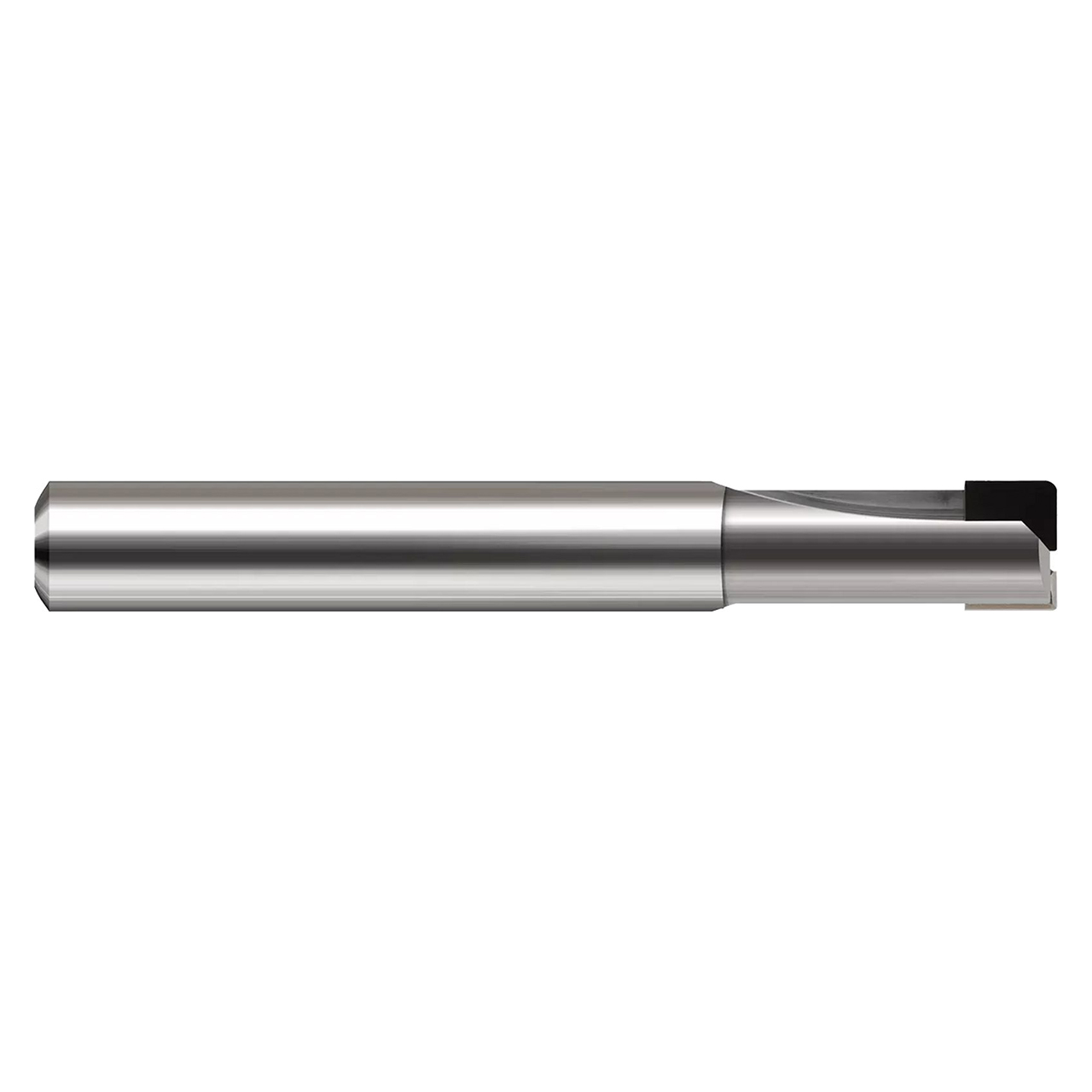

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
1
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (mm):
6.35mm
Finish/Coating:
PCD
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Interval quantity:
1
