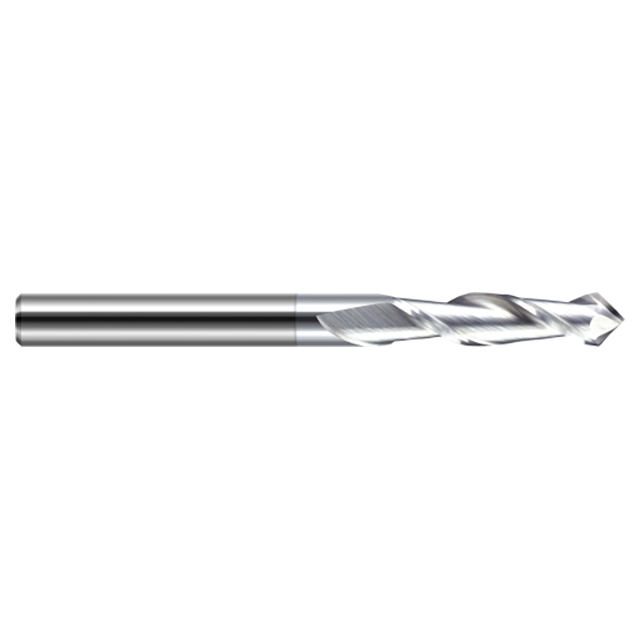

Harvey Tool 859612-C8 | 3/16" Diameter x 3/16" Shank x 5/8" LOC x 2" OAL 90 Degree Angle 2 Flute TiB2 Coated Carbide Drill Mill

$61.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Material:
Carbide
Point Angle:
90 Degree
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
2
Finish/Coating:
TiB2
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25107754
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 3/16"
Cutter Diameter (Decimal Inch) 0.1875"
Length of Cut (Inch) 5/8"
Length of Cut (Decimal Inch) 0.6250"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Angle per Side 45 Degree
Included Angle 90 Degree
Number of Flutes 2
LOC Multiple 3x
Web Thickness 0.0090"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating TiB2
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
