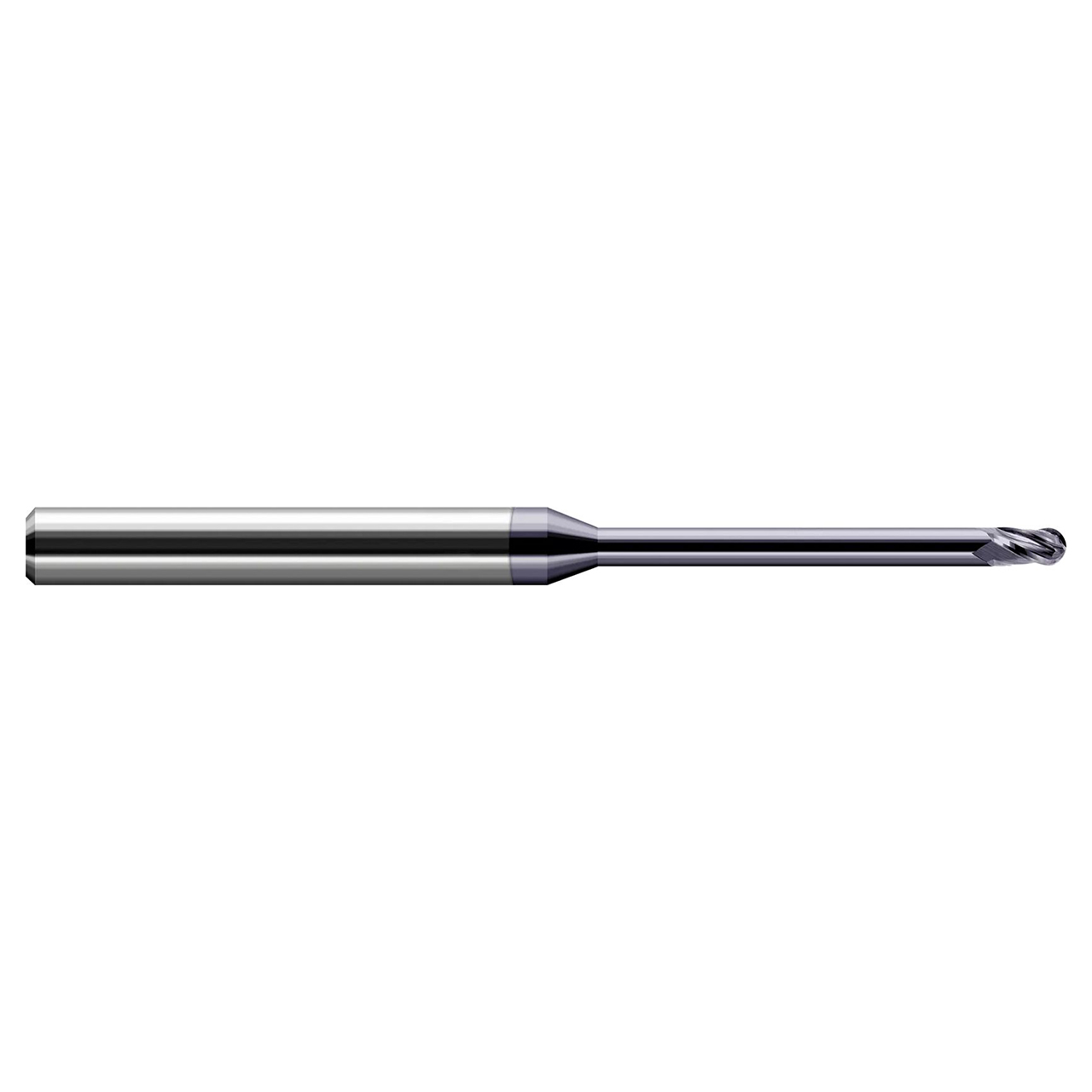

The stub flutes on this miniature end mills - ball - long reach, stub flute collection of Harvey Tool end mills provides maximum rigidity, while its reduced neck diameter helps to avoid heeling during machining.
Features- Long length design for deep cavities, up to 8 Inch overall length
- Stub flutes for maximum rigidity
- Length of cut = 1½ x diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 860620-C4 |
| Cutter Diameter (Inch) | 0.0200" |
| Cutter Diameter (mm) | 0.5mm |
| Neck Diameter (Inch) | 0.0192" |
| Length of Cut (Inch) | 0.0300" |
| Overall Reach (Inch) | 0.1200" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Number of Flutes | 3 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (6x) |
| Coating | C4 |
| Profile | Ball |
