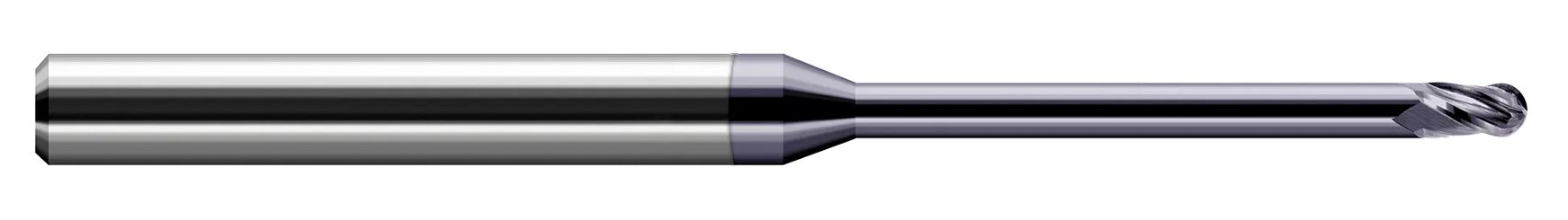

Harvey Tool 860712 | 3/16" Diameter x 3/16" Shank x 9/32" LOC x 3" OAL 3 Flute Uncoated Carbide Ball End Mill

$46.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25186088
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Neck Diameter (Inch)0.1830"
Length of Cut (Inch)0.2810" (9/32)
Overall Reach (Inch)1.1560" (1-5/32)
Overall Length (Inch)3.0000" (3)
Number of Flutes3
LOC Multiple1.5x
Reach Multiple6x
Shank Diameter (Inch)0.1875" (3/16)
Coating/FinishUncoated
