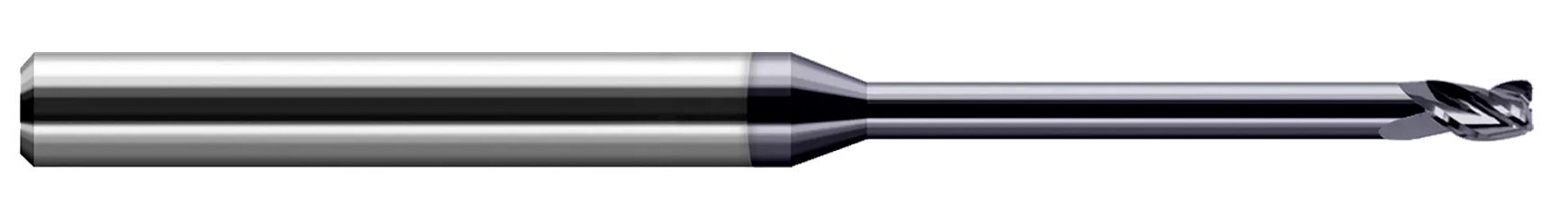

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.
- Corner radius for improved strength
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.2460" |
| Length of Cut (Inch) | 0.3750" (3/8) |
| Overall Reach (Inch) | 2.0000" (2) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 3 |
| Corner Radius | 0.0600" |
| LOC Multiple | 1.5x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Neck Diameter (Decimal Inch):
0.2460"
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Overall Reach (Inch):
2"
Overall Reach (Decimal Inch):
2.0000"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Corner Radius (Decimal Inch):
0.0600"
Number of Flutes:
3
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C3
