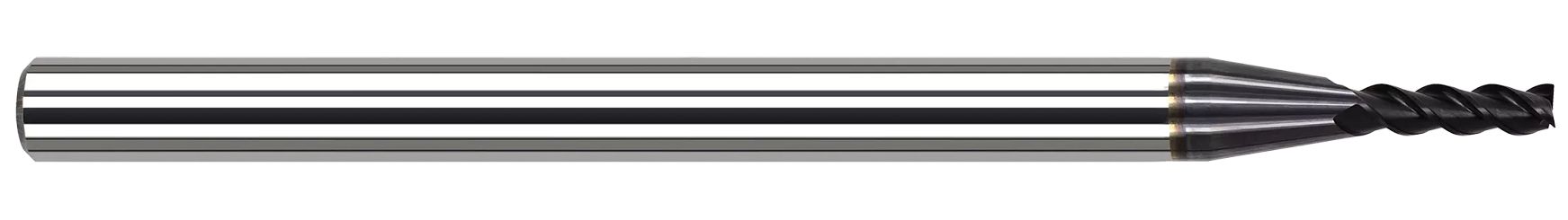

Harvey Tool 870693-C6 | 3/32" Diameter x 1/8" Shank x 1/2" LOC x 2-1/2" OAL 0.0200" Radius 3 Flute AlTiN Nano Coated Carbide Corner Radius End Mill

$48.30
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/32"
Cutter Diameter (Decimal Inch):
0.0930"
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0200"
Number of Flutes:
3
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C6
SKU:
25186864
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
870693-C6

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.

  • Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Suitable for steels up to 45Rc
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0930" (3/32)
Length of Cut (Inch)0.5000" (1/2)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes3
Corner Radius0.0200"
LOC Multiple5x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishC6

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutter Diameter (Inch):
3/32"
Cutter Diameter (Decimal Inch):
0.0930"
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0200"
Number of Flutes:
3
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C6
